Brand Name: yongda
Model Number: GTR-300
Place of Origin: Henan, China (Mainland)
Condition: New
Voltage: 320-420V
Power(W): 300KW
Certification: ISO:9001-2000
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
subject: forging machine
usage: forging steel rods, billet, aluminium ,copper rods
Rated power: 10-300KW
Oscillation frequency: 2-4 KHZ (Customized)
Power consumption: 250-300 KWH per ton
Cooling method: Water cooling machine
warranty parts: all parts of induction heating power supply
warranty period: one year free repalce spare parts
technical suppot: provide long -terms support
sevice: long life
300KW Medium frequency induction forging machine
Technical specification of Medium frequency induction forging machine
Item |
Name |
Parameters |
Parameters |
1 |
Rated power |
300KW |
500KW |
2 |
Input Voltage |
3phase,380V |
3phase,380V |
3 |
Power input frequency |
50Hz |
50Hz |
4 |
Rated output voltage |
700V |
1000V |
5 |
Rated output frequency |
2500-3000Hz |
2500-3000Hz |
6 |
Rate temperature |
1000-1300degree |
1000-1300degree |
7 |
Energy consumption |
200-300KW/H |
400-500KW/H |
8 |
Cooling water inlet pressure |
2.5kg/cm |
4kg/cm |
9 |
Cooling water flow |
5CBM/Hour |
8CBM/Hour |
Composition of medium frequency induction forging machine
1.Medium frequency heating power supply
2 Induction forging furnace
Features of medium frequency induction forging machine
1. Full digital control:control with high precision and high reliability
2. Voltage and current double closed-loop control system:to ensure a stable and reliable operation of the system.
3. Perfect protection system: over voltage,over current,lack of phase,lack of water, temperature is high, etc, various of protection,ensure the equipment's components will not be damaged when a fault occurs
4. High powder factor:the power and power factor of the equipment achieve to highest operating values
5. Complete extrocontrol interface:can easily achieve external temperature ect.closed-loop control
6. Power pneumatic performance 100% completely eliminate the problem of start failure
Auto feeding machine :air cylinder to push bars
Automatic bar feeder, refers to a feeding device: equipped with continuous cycle processing rods type equipment to achieve automation,thereby improving processing efficiency and the degree of automation .Automatic feeding machine can conveyor all kinds of bars/rods, including various types of round bars, hexagonal material, hollow materials,etc.

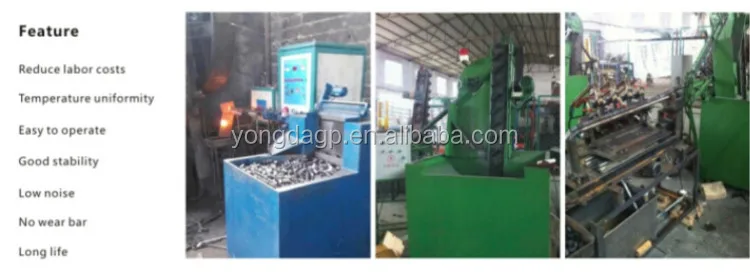

Forging machine working onsite
Forging work piece: steel rods, plate/sheet

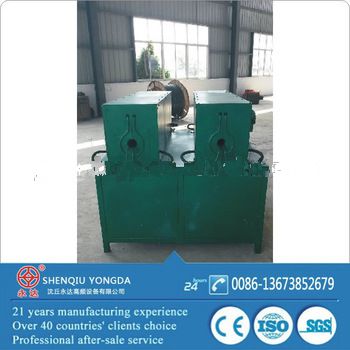

Induction forging furnace: tailor-made, according to size of your work piece
