Brand Name: Yongda
Model Number: IGBT 250KW
Place of Origin: Henan, China (Mainland)
Condition: New
Type: Induction Furnace
Usage: industrial forging furnace
Voltage: 3-380V
Power(W): 250KW
Certification: ISO9001
Warranty: 12 months
After-sales Service Provided: Engineers available to service machinery overseas
name: industrial furnace
usage: heating different work parts,forging,hardening etc.
Core parts: IGBT modules
power: 250kw
Oscillation frequency: 4-10KHZ
Cooling water pressure: 0.2-0.3Mpa
Cooling water amount: 6 T/H
heating temperature: 1600 degree or even higher
export market: Europe, Asia, South America, Oceania etc.
Packing: standard export wooden cases

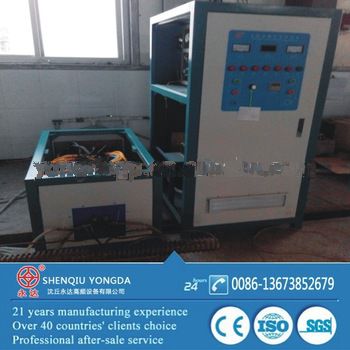

Medium frequency induction forging industrial furnace
Technial parameters of Medium frequency induction forging industrial furnace
Model |
Input voltage(V) |
Cooling water consumption(T/H) |
Oscillation frequency(KHZ) |
Cooling water pressure(MPA) |
IGBT 100KW |
3-380 |
3 |
4-10 |
0.2-0.3 |
IGBT 160KW |
3-380 |
4 |
4-10 |
0.2-0.3 |
IGBT 200KW |
3-380 |
5 |
4-10 |
0.2-0.3 |
IGBT 250KW |
3-380 |
6 |
4-10 |
0.2-0.3 |
IGBT 350KW |
3-380 |
8 |
4-10 |
0.2-0.3 |
IGBT 400KW |
3-380 |
12 |
4-10 |
0.2-0.3 |
IGBT 500KW | 3-380 | 15 | 4-10 | 0.2-0.3 |
Features of medium frequency induction forging industrial furnace
100-600KW New type medium frequency induction heater is based on modern international advanced electric technology theory, adopts Infineon IGBT modules,with strict process technology requirements to produce high-tech products.The product main circuit adopts three-phase bridge rectifier circuit without adjusting voltage, after capacitor filter, half-bridge inverter .main circuit is series resonance,duty cycle adjustable power.
Control panel of medium frequency induction forging industrial furnace
Applications of Medium frequency induction forging industrial furnace
1 All kinds of bolt, nut hot forging;
2 hot-rolled cannabis cobalt;
3 diameter of 50 within all parts through hot forging;
4 Big steel plate hot forging
Product Quality Certification: ISO9001-2000
Packing for medium frequency induction forging industrial furnace :
Wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
Warranty: one year free replacement spare parts, provide long-terms technical support.
Quality control of industrial furnace
To ensure that customers use our induction furnace with no worries, hereby we warrant:
1. We strictly select good material to ensure the reliable quality.
2. Not only in the selection of materials, but also in every production procedures, we strictly act according to the ISO9001 standard, and control by full-scale inspection.
3. The Technical and specialized support from us will be available.
4. The upgraded products information will be timely supplied.
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Thanks for your cooperation !Sincerely provide service for you!
