Brand Name: yongda
Model Number: GTR-400
Place of Origin: Henan, China (Mainland)
Condition: New
Type: Induction Furnace
Usage: metal forging
Voltage: 320-420V ( can be changed )
Power(W): 100-1500KW
Certification: ISO9001:2000
Warranty: 12 months
After-sales Service Provided: Engineers available to service machinery overseas
subject: medium frequency induction furnace
usage: square and round steel forging, copper rods forging
Rated power: 100-1000KW
Oscillation frequency: 0.5-8 KHZ (Customized)
Power consumption: 450 KWH per ton
Cooling method: Water cooling machine
warranty parts: all parts of induction heating power supply
warranty period: one year free repalce spare parts
technical suppot: provide long -terms support
sevice: long life
Steel forging heating medium frequency induction furnace
Medium frequency induction furnace is widely applied in big and middle sized steel rods , square steel forging heating. Complete induction forging furnace, safe and reliable,equipment running well, easy to maintainence.
Technical specification of medium frequency induction furnace
Model |
Rated power |
Rated frequency (KHZ) |
Temperature℃ |
Power consumption (KWH/T) |
Work piece diameter (MM) |
GTR-50 |
50KW |
10 |
900-1250 |
350-450 |
4-30 |
GTR-100 |
100KW |
8-10 |
900-1250 |
350-450 |
19-41 |
GTR-150 |
150KW |
6-8 |
900-1250 |
350-450 |
19-41 |
GTR-200 |
200KW |
6-8 |
900-1250 |
350-450 |
24-51 |
GTR-250 |
250KW |
6-8 |
900-1250 |
350-450 |
24-51 |
GTR-300 |
300KW |
2-4 |
900-1250 |
350-450 |
29-61 |
GTR-350 |
350KW |
2-4 |
900-1250 |
350-450 |
29-61 |
GTR-400 |
400KW |
2-4 |
900-1250 |
350-450 |
29-81 |
GTR-500 |
500KW |
2-4 |
900-1250 |
350-450 |
39-81 |
GTR-600 |
600KW |
1-2 |
900-1250 |
350-450 |
49-101 |
GTR-750 |
750KW |
1-2 |
900-1250 |
350-450 |
49-101 |
GTR-1000 |
1000KW |
0.5-1 |
900-1250 |
350-450 |
59-121 |
Warranty:one year free replacement spare parts. Provide long-terms technical support

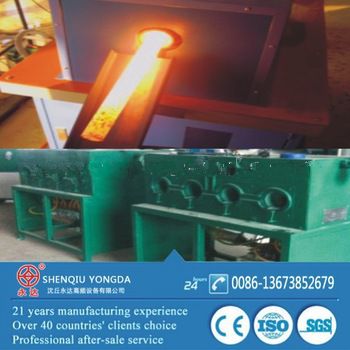

Working onsite of medium frequency induction furnace
Composition of GTR-400 medium frequency induction furnace
1. Induction heating power supply
2. Induction forging furnace
3. Automatic feeding system: cylinder
4.Workbench /support box
5. Auxiliary equipment: closed cooling tower (optional)
Different type of induction forging furnace.
Induction forging round steel rods
Products of Shenqiu Yongda Company:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.
Oversea customers visit us .
If you have metal work parts require heating, please feel free to contact us. Our engineer will design the best solution, recommend you suitable machine model, and our machine price is very competitive.
