Brand Name: Yongda
Model Number: WZP-60
Place of Origin: Henan, China (Mainland)
After-sales Service Provided: Engineers available to service machinery overseas
name: induction heating machine for iron wrought
Usage: metal heating, forging steel bars,
Oscillation frequency: 15-30KHZ
input current: 3-60A
Cooling method: Water cooling machine
Duty cycle: 100% full load ,24hours of continuous work
Core parts: IGBT modules
accessories: induction coils, copper tube made,and foot swith
nature of us: 20 years manufacturer

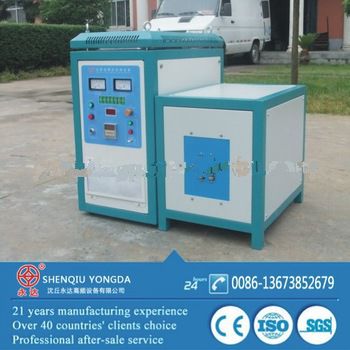

High quality induction heating machine for iron wrought
Induction heating machine product features:
1, my company transistor (IGBT) high frequency power-saving than vacuum tube up to 40-60%, saving 60%, external support facilities to reduce investment by 75%.
2, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, high reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, use large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic, and the lack of heat insulation of cold sub-time control functions.
6, automatic frequency tracking, stepless power adjustment, easy to use, 10 minutes to learn to use.
7, the company has a complete sales service system and the treatment of professional engineers, to ensure that you have no worry about technology or service.
Control panel of induction heating machine for iron wrought
Different models of induction heating machine
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |

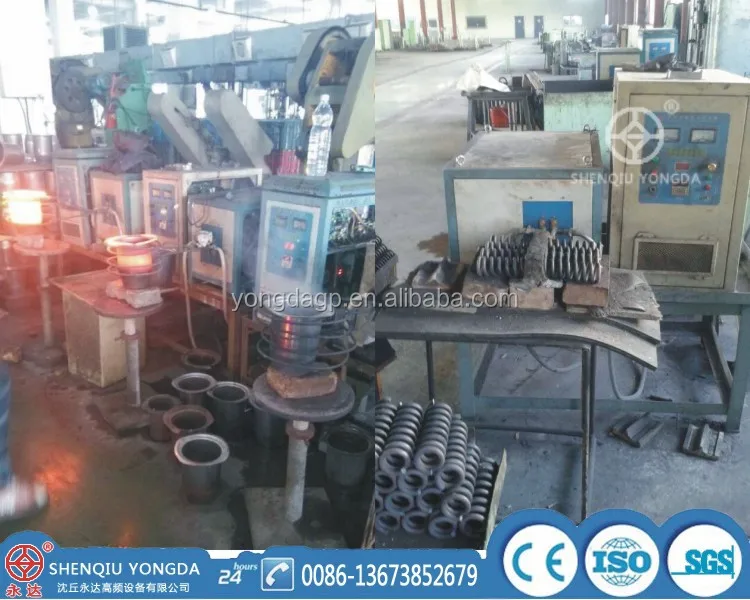

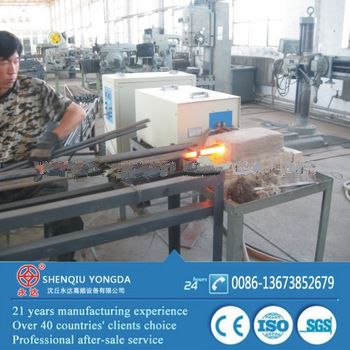

Applications of induction heating machine for fron wrought
1,all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot. metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.
2, Various types of hardware, electrical, hydraulic, pneumatic components, automobiles, and motorcycle parts and other mechanical parts of the surface of the metal, bore, in part or in whole quenching. Such as: hammer, knife, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin, large-scale Machine Tool, ductile iron quenching.
Shaft hardening
3, various types of brazing carbide blade, turning, milling, planing, reamer, diamond saw blade, serrated welding; grinding, drilling, cutting welding; brass, copper, stainless steel pot, etc. hybrid welding of metallic materials.
4, metal melting: melting gold, silver and copper.
