35KW High frequency induction heating/brazing/forging/hardening device
35KW High frequency induction heating/brazing/forging/hardening device35KW High frequency induction heating/brazing/forging/hardening device35KW High frequency induction heating/brazing/forging/hardening device

35KW High frequency induction heating/brazing/forging/hardening device

FOB Price:
US 680-4500 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
500 Set/Sets per Year
Port:
Shanghai, Qingdao,Tianjin, Guangzhou or as you request
Place of Origin:
Henan, China (Mainland)
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash
Brand:
Yongda
Products Model:
WZP-60
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Yongda

    Model Number: WZP-60

    Place of Origin: Henan, China (Mainland)

  • After-sales Service Provided: Engineers available to service machinery overseas

    name: induction heat

    usage: heating metal,hardening ,forging,brazing,annealing etc.

  • Input current: 4-60A

    Power: adjustable from 3 KW to 35 KW

    Core parts: IGBT modules

  • accessories: induction coils,foot switch

    frequency: 15-30KHZ

    coils: easy to change

  • Duty cycle: 100% full load ,24hours of continuous work

    warranty: one year free replacement spare parts

Packaging & Delivery

  • Packaging Details: 1. Wooden cases(plywood) for packing induction heat 2. Transport by air/sea/express/train
  • Delivery Detail: 3-5 days after your formal order

Specifications

35KW High frequency induction heating/brazing/forging/hardening device

Product Description

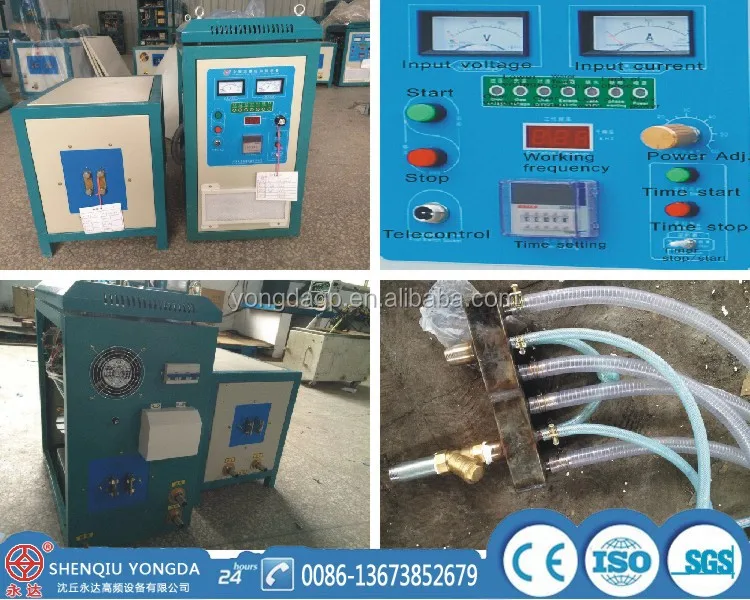

WZP-60(35KW) induction heating/brazing/forging/hardening device has two parts: generator and transformer.
Accessories: induction coils,foot switch. Induction coils are made of copper tube.
Induction coils is customized ,according to size of customer's metal parts.
Features of induction heating/brazing/hardening devive
1
, small size, light weight, simple installation, easy operation.
2, high efficiency, energy saving is very clear, high-frequency equipment save 60% energy than  traditional
3, secure, reliable, non-million-volt high-pressure, very safe for the operator.
4, the frequency bandwidth to meet the different parts of brazing, heat treatment, heating before forging.
5, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.

Technical parameters of WZP-60/ 35KW induction heat

Model Work power Output power Oscillation frequency Output current Cooling water pressure Size Weight
WZP-60 three phase 3800V+/-10% 50-60HZ 3-35KW 10-50KHZ 6-60A 0.1MPA

generator 500×360×455mm

transformer 590*330*650mm

41kgs, 37kgs



Applications of induction heat

Induction hardening categories:
1. All kinds of gears, sprockets, shaft quenching;
2. a variety of axle, leaf springs, fork, valve, rocker, ball stud and other auto parts quenching.
3. All kinds of engine parts, gear parts hardened surface;
4 bed machine tool of machine tool industry guide of quenching (lathe, milling machine, planer, punch, etc.).
5. All kinds of pliers, knives, scissors, axes, hammers and other hand tools quenching.

Second, induction forging categories:
1. All kinds of bolt, nut hot forging;
2 hot-rolled cannabis cobalt;
3 diameter of 50 within all parts through hot forging;

Third, induction brazing welding class:
1 piece of diamond drill bit composite welding;
2 of carbide blade, saw blade welding;

We are in induction heat industry exhibition

Packaging & Shipping

Packing of induction heat : wooden cases for cartons,as you request.



Warranty: one year guarantee

After -sale service: provide long-term technical support

Install: When you receive the machine, can easy install the machine based on our installing drawings, sketch.

Customer need prepare water hose, electric, build a water pool or buy a closed cooling tower, or industrial chiller.

We aslo can provide if you needed. Such as CNC hardening machine tool ,automatic feeding machine, infrared thermometer, industrial chiller etc. These auxiliary machines are optional.
