2015 Most popular mf induction quenching machine

2015 Most popular mf induction quenching machine

FOB Price:

US 5000-35000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

IGBT500KW /2-10KHZ

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: IGBT500KW /2-10KHZ

Place of Origin: Henan, China (Mainland)
After-sales Service Provided: Engineers available to service machinery overseas
name: mf quenching machine
Oscillation frequency: 4-10KHZ
Core parts: IGBT modules
Alarm Functions: OV,OC,LW,LP etc.indicators
Voltage: 3-380V
nature of us: 20 years manufacturer
export market: Europe, Asia, South America, Oceania etc.
Packing: standard export wooden cases

Packaging & Delivery

Packaging Details: 1.Two wooden cases(plywood) for packing mf quenching machine 2.Inside filling with plastic foam for water proof and shockproof 3.Transport by sea or by air in Shanghai port
Delivery Detail: Within 10 days after 30% advance payment

Specifications

2015 Most popular mf induction quenching machine

Product Description

Features of mf quenching machine

1.heating fast and evenly.

2.adopt IGBT modules

3.adopt inverting technology

4.safety and reliable

5.automatic control,easy operate

Technical parameters of igbt mf quenching machine

Model	Input voltage	Output power	Oscillation frequency (KHZ)	Cooling water amount (T/H)	Cooling water pressure (MPA)
IGBT100KW/2-10KHZ	3-380V	100KW	2-10KHZ	3	0.2-0.3MPA
IGBT160KW/2-10KHZ	3-380V	160KW	2-10KHZ	4	0.2-0.3MPA
IGBT200KW/2-10KHZ	3-380V	200KW	2-10KHZ	5	0.2-0.3MPA
IGBT250KW/2-10KHZ	3-380V	250KW	2-10KHZ	6	0.2-0.3MPA
IGBT350KW/2-10KHZ	3-380V	350KW	2-10KHZ	8	0.2-0.3MPA
IGBT400KW/2-10KHZ	3-380V	400KW	2-10KHZ	12	0.2-0.3MPA
IGBT500KW/2-10KHZ	3-380V	500KW	2-10KHZ	15	0.2-0.3MPA

Applications of igbt mf quenching machine

Hardening/quenching categories:
1. All kinds of gears, sprockets, shaft quenching; 2. All kinds of axle, leaf springs, fork, valve, rocker, ball stud and other auto parts quenching. 3. All kinds of engine parts, gear parts surface hardening. 4. Machine tool guide of machine tool industry quenching such as lathe, milling machine, planer, punch, etc. 5. All kinds of pliers, knives, scissors, axes, hammers and other hand tools quenching
Forging categories
1. All kinds of bolt, nut hot forging; 2. Cannabis cobalt forging,knife; 3 diameter of 50 within all parts through hot forging
welding class
1. diamond drill bit composite welding; 2. carbide blade, saw blade welding; 3. All kinds of cutter, drill head, drill pipe, coal drill bits, drill bits and other mine parts of the wind welding
Annealing categories:
1. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup . 2. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.

Hardening/quenching categories:

1. All kinds of gears, sprockets, shaft quenching;

2. All kinds of axle, leaf springs, fork, valve, rocker, ball stud and other auto parts quenching.

3. All kinds of engine parts, gear parts surface hardening.

4. Machine tool guide of machine tool industry quenching such as lathe, milling machine, planer, punch, etc.

5. All kinds of pliers, knives, scissors, axes, hammers and other hand tools quenching

Forging categories

1. All kinds of bolt, nut hot forging;

2. Cannabis cobalt forging,knife;

3 diameter of 50 within all parts through hot forging

welding class

1. diamond drill bit composite welding;

2. carbide blade, saw blade welding;

3. All kinds of cutter, drill head, drill pipe, coal drill bits, drill bits and other mine parts of the wind welding

Annealing categories:

1. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can,

annealed folded edge, annealed sink, stainless steel tube, tableware and cup .

2. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock,

hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator

and various aluminum products.

Advantages of igbt mf quenching machine

100-500KW new type medium frequency induction heating machine is based on modern international advanced electric technology theory, adopts Infineon IGBT modules,with strict process technology requirements to produce high-tech products.The product main circuit adopts three-phase bridge rectifier circuit without adjusting voltage, after capacitor filter, half-bridge inverter .main circuit is series resonance,duty cycle adjustable power.

1. Power consumption saving:generally saving 10%-20% energy than SCR medium frequency devices.
2. Full protection:over voltage, lack of water,over current,over heating, lack of phase, etc. sound and light alarm system
3. Application range:diameter below 200mm rods tempering, forging,extrusion etc.

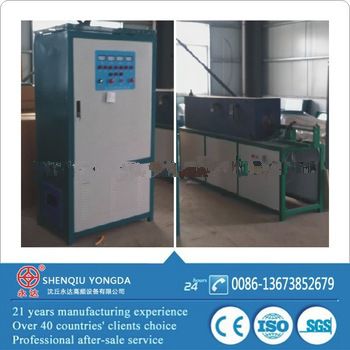

IGBT Medium frequency induction heating equipment and induction forging furnace

Automatic feeding steel rods: air cylinder to push rods

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.

Welcome everyone to visit us and negotiation business !
