Brand Name: Yongda
Model Number: IGBT400KW /2-10KHZ
Place of Origin: Henan, China (Mainland)
2015 China supplier MF industrial induction forging furnace
Shenqiu Yongda High frequency equipment Co.,ltd is China biggest production manufacturer of industrial induction furnace.
Model |
Input voltage |
Output power |
Oscillation frequency (KHZ) |
Cooling water amount (T/H) |
Cooling water pressure (MPA) |
IGBT100KW/2-10KHZ |
3-380V |
100KW |
2-10KHZ |
3 |
0.2-0.3MPA |
IGBT160KW/2-10KHZ |
3-380V |
160KW |
2-10KHZ |
4 |
0.2-0.3MPA |
IGBT200KW/2-10KHZ |
3-380V |
200KW |
2-10KHZ |
5 |
0.2-0.3MPA |
IGBT250KW/2-10KHZ |
3-380V |
250KW |
2-10KHZ |
6 |
0.2-0.3MPA |
IGBT350KW/2-10KHZ |
3-380V |
350KW |
2-10KHZ |
8 |
0.2-0.3MPA |
IGBT400KW/2-10KHZ |
3-380V |
400KW |
2-10KHZ |
12 |
0.2-0.3MPA |
IGBT500KW/2-10KHZ |
3-380V |
500KW |
2-10KHZ |
15 |
0.2-0.3MPA |
IGBT400KW /2-10KHZ induction heating machine:generator and forging furnace
Applications of industrial induction forging furnace
diathermy (forging) the following work pieces
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.
Advantages of igbt industrial induction forging furnace
100-500KW new type medium frequency induction heating generator is based on modern international advanced electric technology theory, adopts Infineon IGBT modules,with strict process technology requirements to produce high-tech products.The product main circuit adopts three-phase bridge rectifier circuit without adjusting voltage, after capacitor filter, half-bridge inverter .main circuit is series resonance,duty cycle adjustable power.
1. Power consumption saving:generally saving 10%-20% energy than SCR medium frequency devices.
2. Full protection:over voltage, lack of water,over current,over heating, lack of phase, etc. sound and light alarm system
3. Application range:diameter below 200mm rods tempering, forging,extrusion etc.

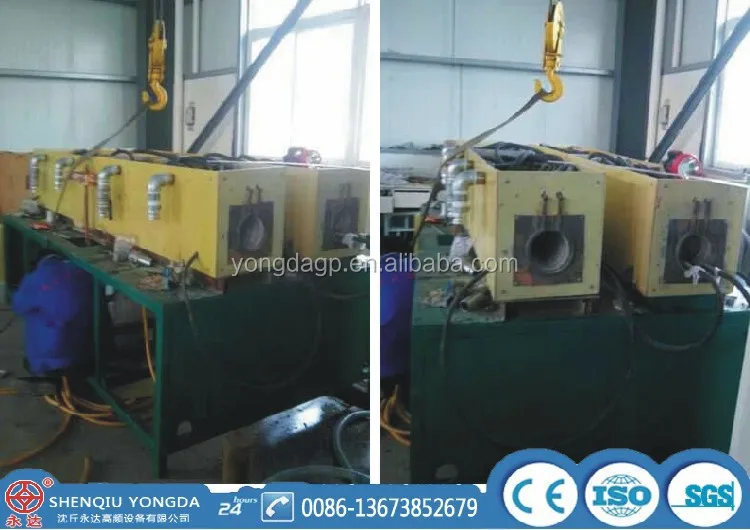

Industrial induction forging furnace
1.Warranty: one year free replacement spare parts.Excess warranty period, you also can buy spare parts with very low cost.
2.Provide install and technology instruction by sending drawings, email, or telephone,video.
3.If you need, will arrange one engineer to your place,instruct install machine and training operators.
4.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
5.Provide long-terms technical support.
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Industrial induction forging furnace , Shenqiu yongda has over 20 years experience in production and marketing, working onsite.
Sincerely provide service for you!
