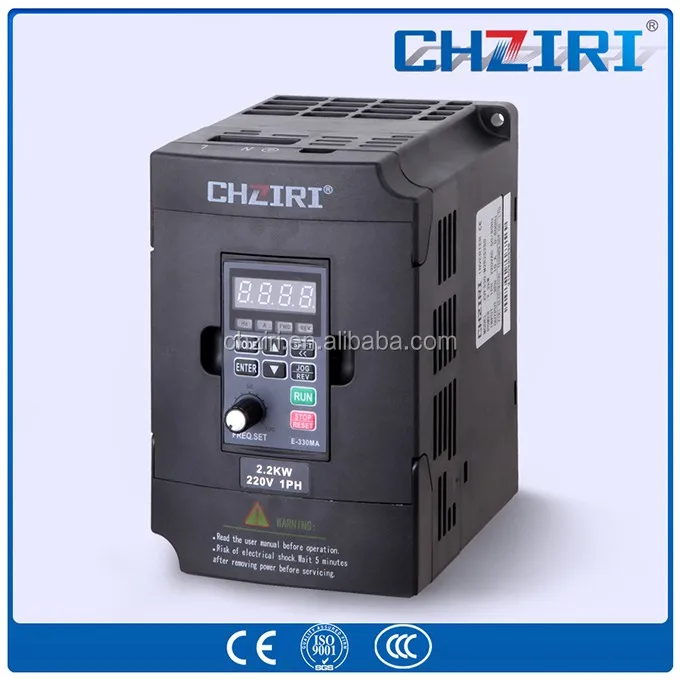

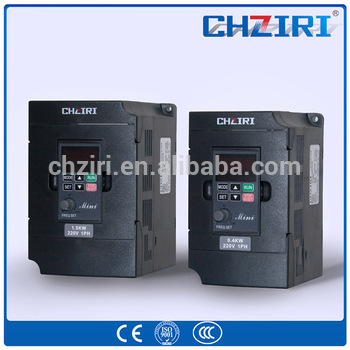

AC variable frequency drive brands single phase 220V 1500W variable frequency drive

AC variable frequency drive brands single phase 220V 1500W variable frequency drive

FOB Price:

US 192-216 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

8000 Piece/Pieces per Month

Port:

Shanghai/Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

CHZIRI

Products Model:

ZVF330

Products Details
Company Profile

Quick Details

Brand Name: CHZIRI

Model Number: ZVF330

Place of Origin: Zhejiang, China (Mainland)
Output Power: 1500w
Output Type: Triple
Size: 215*145*178mm
Weight: 2
Input Voltage: 220V/380v single phase
Output Voltage: 3 phase 0-input voltage
Type: Variable Frequency drive
Output Frequency: 0-600hz
Output Current: 3.7A/7.5A
control: vector control/ V/F control
warranty: 12 months
IP: 20
starting frequency: 0.00-10.00hz
power: 5.5kw
carrier frequency: 1.0-15.0khz
output frequency: 0.00hz --600hz

Packaging & Delivery

Packaging Details: Standard Export Package
Delivery Detail: within 5 days

Specifications

AC variable frequency drive brands single phase 220V 1500W variable frequency drive

Product Overviews

Product Description

Product Name	AC variable frequency drive brands single phase 220V 1500W variable frequency drive
Input Voltage (V)	Single phase 220V± 20%
Input Voltage (V)	Three phase 380V ± 20%
Output Voltage(V)	Three phase 0~Input Voltage
Output Voltage(V)	Three phase 0~Input Voltage
Power Range (kW)	0.4kW~2.2kW, At 220V
Power Range (kW)	0.75kW~2.2kW, At 380V/440±20%
Overload capacity	150% 1 minute; 180% 1 second; 200% transient protection
Output frequency	0-600Hz.
Features	1.Multiple password protection mode 2.Remote control operation keypad, convenient for remote control. 3.V/F curve &multi-inflection point setting, flexible configuration . 4.Keyboard parameter copy function . easy to set the parameters for multi-inverters . 5.Wide industry application . to expand special function according to different industries. 6.Multiple hardware and software protection and optimized hardware for anti-interference technology. 7.Multi-step speed and wobble frequency running (external terminal 15 steps speed control). 8.Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain . 9.Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design . 10.Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load . 11.Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system . 12.Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
OEM	Yes
Certificate	CE, ISO
Warranty Time	1 Year
Payment terms	T/T,L/C, Western Union, Cash
Delivery Time	within 7 days
Shipping methods	DHL / EMS / UPS / FedEx / BY sea (According to customer's requirement)
Port	NINGBO / SHANGHAI

Inverter Outline

Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)
Inverter Model	Voltage (V)	Power (KW)	Current ( A)	H	H1	W	W1	D	d
ZVF330-M0R4S2MD	220V	0.4	2.4	141.5	130.5	85	74	125	5
ZVF330-M0R7S2MD		0.75	4.0	141.5	130.5	85	74	125	5
ZVF330-M1R5S2SD		1.5	7.5	151.0	140	100	89.5	128.5	5
ZVF330-M2R2S2SD		2.2	10	151.0	140	100	89.5	128.5	5
ZVF330-M0R7T4SD	380V	0.75	2.3	151.0	140	100	89.5	128.5	5
ZVF330-M1R5T4SD		1.5	3.7	151.0	140	100	89.5	128.5	5
ZVF330-M2R2T4SD		2.2	5.0	151.0	140	100	89.5	128.5	5

Inverter Diagram

Application

Product Shows

Detailed Shows

Need Professional Recommendation?

Please Feel FreeTo Contact Us!

Hot products

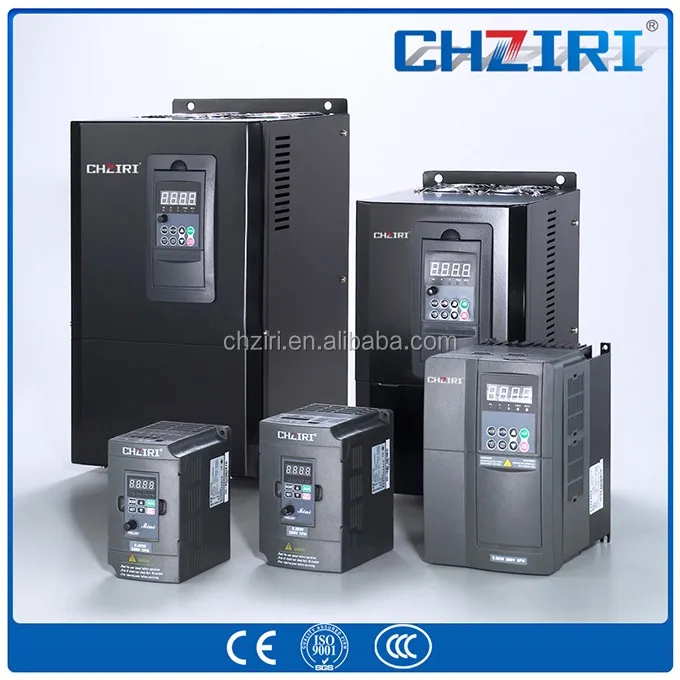

ZVF300 Frequency Inverter
