Specifications
high flow rate centrifugal water pump
1. single stage and double suction
2. horizontal split case pump
3. saving power
Irrigation Water Pump

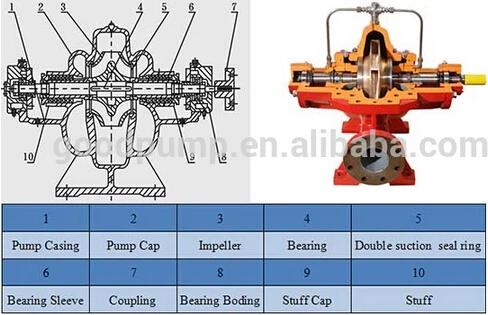

>>>Structure Drawing(Packing seal or Mechanical seal )
![]()
High flow rate centrifugal water pump is single stage double suction split casing pump with high capacity and pressure, which can transmit clean water or similar liquids(Oil).
1. single stage &double suction 2. horizontal split case pump 3. power saving 4. big flow (72~3170m3/h), head: 10~125m, Size: 100~800mm
>>>Application(Once using check valve, the pump can be self-priming )
Factory, mine, water supply, power station, irrigation, hydraulic engineering and so on.
But temperature can not more than 80 °C.
![]()

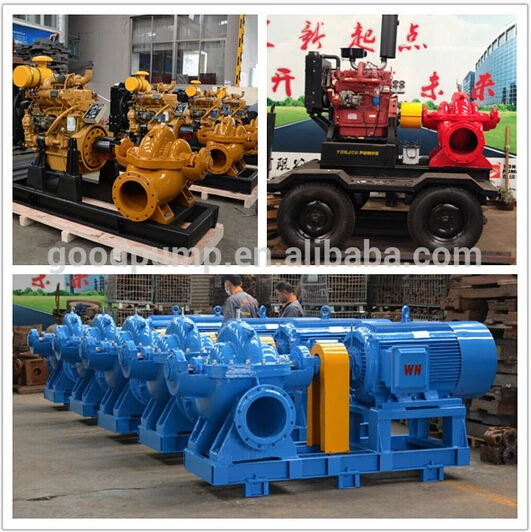

>>>Drive: Electri motor or Diesel Engine
![]()

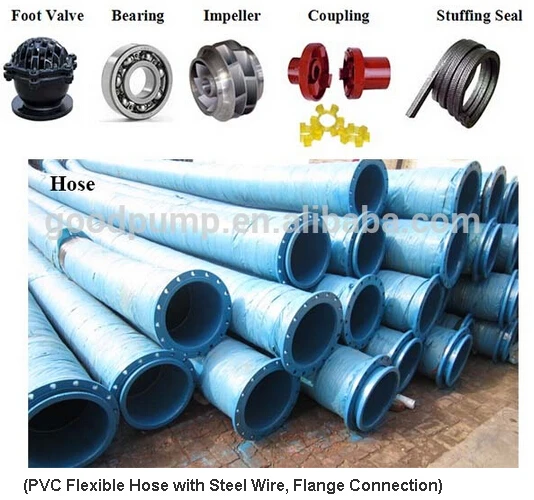

>>> Accessories & Spare Parts
![]()
>>>Technical Data
Capacity:72 to3170 m3/h
Size: 100~800mm
Head: 10 to 125 m
Power: 30 to 800 kw
Speed: 1450 or 2900 r/min

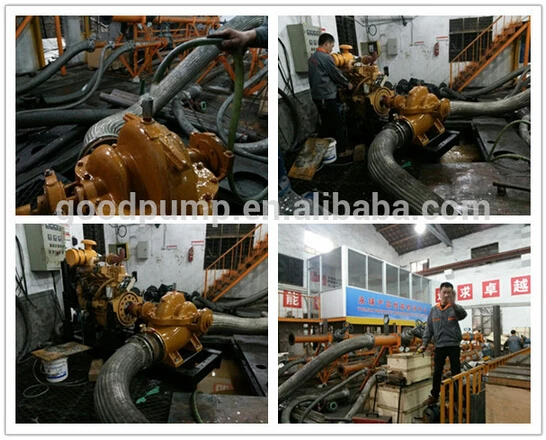

>>>Testing
![]()
>>>Our package
Strong enough during delivery by air or by sea.
Plywood Case or Steel Bar with Plastic Film
![]()
>>>Company Information
Zhejiang Yonjou Technology Co., Ltd located in Yongjia country, Wenzhou city, Zhejiang province, bordersLishui on the west, Taizhou on the north, and Fujian to the south, founded in 1995, our company is specialized in manufacturing high quality oil pump, diaphragm pump, Diesel engine pump set, split& single stage& multistage centrifugal pump etc.
>>>Office&Workshop
![]()
![]()
>>>Customers' Visiting
![]()
>>>CE Certificate and ISO9001:2008 Certificate
![]()
>>>FAQ--- Frequently Asked Question
1. How to get our quotation in time, pls answer following questions:
1)What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
2) What's the flow or capcity (m3/h, L/m)?
3) What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
4) Contact us to get the quotation
2.OEM: OK
3. MOQ: 1set
4. Package:
standard export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
