Brand Name: JWW
Model Number: JWW-CZ900
Place of Origin: China (Mainland)
Condition: New
Capacity: 900kg/24hour, 2000lb/24hour
Ice Shape: Cube, square
Voltage: 220V
Power(W): 3950W
Dimension(L*W*H): 810*1220*1950mm
Weight: 310kgs
Certification: CE
Warranty: 12 months
After-sales Service Provided: Overseas third-party support available
Output capacity: 900kg/24hour, 2000lb/24hour
Condenser: Air cooling
Ice size: 22mm
Ice storage: 500kgs
Ice thickness: Adjustable
Refrigerant: R404a
OEM: Acceptable
Compressor: Copeland
Application: Hotels or restaurants etc
Material: Stainless Steel
Big model 900kg for one day industrial cube ice making machine for sale
1. ICE CUBE MAKING MACHINE INTRODUCTION
(1) Operation environment:
Ambient temperature 2-43°C, Water temperature 2-38°C, Water pressure 0.13Mpa-0.55Mpa
(2) The maximum output under condition:
Ambient temperature 21°C, Water temperature 12°C
(3) Cooling system:
Air cooling
(4) Installation:
The machine has been installed and tested before delivery. The customers shall connect water
pipes and power,.
(5) The accessory spared parts are offered free of charge:
Filter + Connector + Scooper

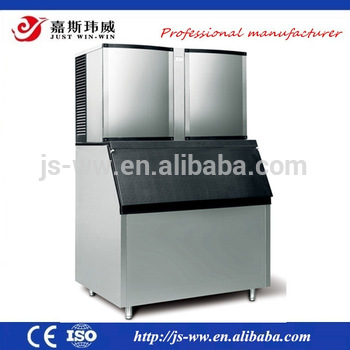

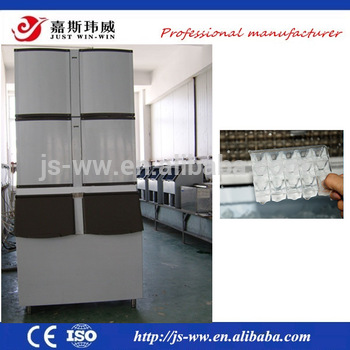

2. Crystal edible ice cube maker machine display :

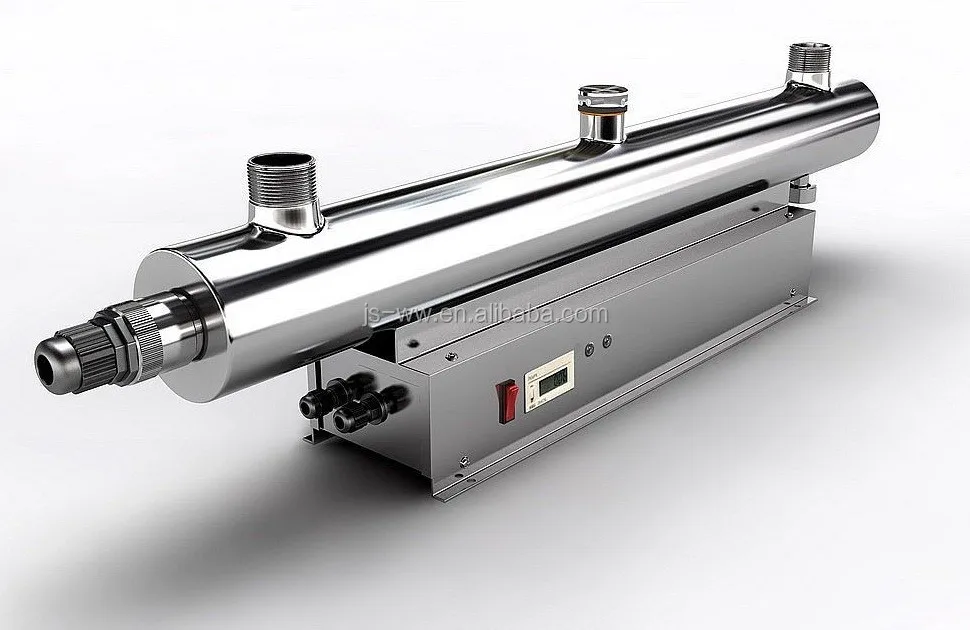

The disinfecting equipment used for water filer :
Air cooling type :
Water cooling type :
The ice cube making machine main parts :
Compressor |
ASPERA/BITZER/COPELAND/Danfoss etc |
Control system |
PLC or Brand Imported etc |
Expansion Valve |
Denmark Danfoss etc |
Drying Filter |
Denmark Danfoss etc |
Defrost Solenoid Valve |
Japan Saginomiya etc |
Hydraulic Valve |
Japan Saginomiya etc |
Condenser Fan |
Germany EBM etc |
Pump |
Germany EBM etc |
1. The ice cube making machine parameters :
Model |
JWW-CZ1000 |
Ice shape |
Cube 22mm |
Harvest(cube) |
22*20*2 |
Ice production(KG/24H.) |
1000 |
Ice storage(KG) |
500 |
Voltage |
220/50 |
Frequency |
110/60 |
Power input (W.) |
3950 |
Condenser |
Air |
Refrigerant |
R404a |
Dimension (W*D*H)mm |
810*1220*1950 |
Net weight(KG) |
272 |
Gross weight(KG) |
310 |
2. Cube ice making machine installation process :
3. Cube ice making machine features :
1) Main parts are imported from name brand abroad.
2) Exterior material : use stainless steel 304
3) Integral foaming technique, high foaming density and good heat preservation effect Integral
foaming technique, high foaming density and good heat preservation effectly .
4) The ice cube is not easy to melt under the freezing point -18C.
5) Ice cube size: the thickness of the ice cube can be adjustable.
6) Microcomputer controlling system provides the effect of safety and protect.
Ice cube making machine packing and delivery :
1. Company Advantage :
Reasons to Choose Us
Finest Quality with CE certificate.
With experienced workers and good material , we are do our best to manufacture the better
quality products for our customers.
Competent Prices
lower purchase cost than regular factories and distributors
1)Relying on our own plant, the cost should be reduced because of mass production
2) Relying on our more than 400 franchiser, we can more convenient to get the floor price.
On-Time Delivery
Generally the maximum capacity is 100pcs/day , so we are able to arrange the delivery on time.
Good Packing
We will pack the machines with hard carton ,and plywood tray or case which able to protect the
product safety during the transport.
Attractive Discounts
We offer our valued customers special discounts on big orders for big order over 1*20'FCL . Our returning customers also get attractive discounts under our hospitality package.
2. Our service :
Pre-sale service
1)24hours online to ensure quick response to customers' inquiry or online message
2)Help customers to choose the best suitable machine model;
3)Offer detailed data sheet and competitive prices;
Contract execution
1)Machine production will be arranged strictly according to the contract;
2)Machine photos will be sent to you for confirmation during installation
3)Send customs clearance documents by DHL
4)Update latest news after delivery and prepare customs clearance;
After-sale service
1)12 months warranty except for wearing parts;
2)Broken spare parts (except for wearing parts) will be sent for free due to quality problems
3)In time response to customers technical problems;
4) New products update for customers' reference
1) What would be your delivery date?
general production takes about 3weeks.
2)What is your deliver type?
by FOB, CNF, CIF. It is depends on the client’s need.
3)What is the package for your products?
made by Plywood package, carton package or wooden package.
4)What is your Minimum order quantity?
JWW focus on distributor and wholesales, if your order is less than the MOQ setting. Please
discuss with our salesman.
5)Does your price valid all the time?
General for 30 day validity. If you need any update price, please feel free to contact us.
6)How could I know your products’ specification is suit for our country power?
According to the need, and after your confirm to make suitable voltage and frequency products.
7)Could I get spare parts?
We will enclosed with some quick wear part for your order.
8)How do you delivery my orders?
As most of our products are heavy and large, so most of our products are delivered by sea or
Railway, airfreight or express can also be arranged upon request.
9)What documents can you provide me for Customs clearance?
We will provide you with usual documents: Commercial Invoice, Packing List, B/L. The other
documents, other documents can also be provided upon request.
