Brand Name: JW
Model Number: JW-F1000
Place of Origin: Hebei, China (Mainland)
Condition: New
Capacity: 1000kg/day
Ice Shape: Flake Ice
Voltage: 380v/50hz/3p
Power(W): 4.31KW
Dimension(L*W*H): 1310*970*880mm
Weight: 230kg
Certification: CE
Warranty: 15 Months
After-sales Service Provided: Engineers available to service machinery overseas
Compressor: Bitzer
Refrigerant: R22/R404a
Cooling way: Air/water
Key word: ice flake maker machine
Application: fish industry
Material: Stainless Steel
Power supply: 380V/4.31KW
Expansion Valve: Danmark - Danfoss Brand
ice shape: flake
Ice thickness: 1.5~2.5mm
Parameters on flake ice machine
Model | Maximun Capacity(kg) | Ice shape | Storage Capacity(kg) | Dimension (W*D*H)mm |
Power | Refrigerant | Condenser |
JW-F200 |
200 | 150 | 730*760*600 | 220V1100W | R22 | ||
JW-F500 |
300 | Flake ice | 280 | 760*830*1750 | 220V1500W | R22/R404a | Air/Water |
JW-F1000 | 1000 | 400 | 1310*1060*1700 | 380V3900W | R22/R404a | ||
JW-F2000 | 2000 | 1000 | 1550*1400*2100 | 380V6700W | R22/R404a | ||
JW-F2500 | 2500 | 1000 | 1550*1400*2200 | 380V8500W | R22/R404a | ||
JW-F3000 | 3000 | 1200 | 1650*1460*2800 | 380V9800W | R22/R404a | ||
JW-F4000 | 4000 | 2000 | 1750*1550*1250 | 380V18.32kw | R22/R404a | ||
JW-F5000 | 5000 | 3000 | 1750*1550*1600 | 380V23.122kw | R22/R404a | ||
JW-F6000 | 6000 | 3000 | 1750*1550*1600 | 380V26.15kw | R22/R404a | ||
JW-F8000 | 8000 | 4000 | 2530*1830*1680 | 380V31.5kw | R22/R404a | ||
JW-F10 | 10000 | 5000 | 2530*1830*1820 | 380V45.5kw | R22/R404a | ||
JW-F15 | 15000 | 7500 | 3100*2090*1865 | 380V64kw | R22/R404a | ||
JW-F20 | 20000 |
10000 |
3695*2090*2050 | 380V75.8kw | R22/R404a | ||
JW-F25 | 25000 | 12500 | 3695*2090*2265 | 380V97.8kw | R22/R404a | ||
JW-F30 | 30000 | 15000 | 3880*2120*2400 | 380V115.7kw | R22/R404a |

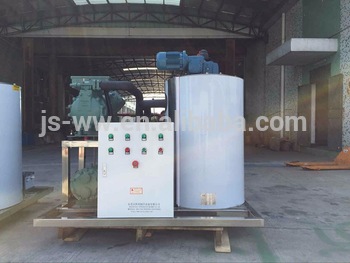

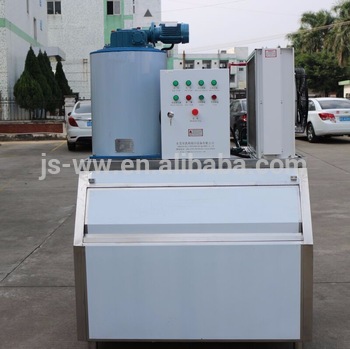

Industrial Flake Ice Maker /Flake Ice Machine 1 Ton of Ice
PS:Flake ice machine parts.
PS
Our flake ice machine factory
Payment |
30% T/T as deposit and balance T/T before delivery. |
Delivery |
Approx 20 working days after receiving deposit. |
Packag |
Standard export container. |
MOQ |
1 SET |
Warranty period
|
2 year after B/L date. Any failure occurred within the period due to our |
responsibility, we'll supply you the spare parts for free, and permanent technical |
|
support & consultation all life for the block ice machines. |
|
Note |
Please inform us if you need any special inspection. |
Guarantee
|
a.All ice systems delivered to customers are carefully examined and tested, with 72 hours trouble-free trial operation.
b. All ice systems delivered are plug-in ready and well piped.
c.All ice systems enjoy 24 months guarantee ever since B/L date. |
Technical support |
a. provides full technical support and training courses after equipment installation andcommissioning. b. 7*24 hours phone assistance on technical support. |
Failure Claim procedures |
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure. b. Relevant pictures are required for failure confirmation. c. engineering and after-sales service team will check and form a diagnosis report. d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures |
