High quality electric dryer heating element
High quality electric dryer heating elementHigh quality electric dryer heating elementHigh quality electric dryer heating element

High quality electric dryer heating element

FOB Price:
US 12-50 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
2000 Piece/Pieces per Week
Port:
Shanghai
Place of Origin:
Jiangsu, China (Mainland)
Payment Terms:
L/C,T/T,Western Union,MoneyGram,Escrow
Brand:
Laiyuan hot runner coil heater
Products Model:
LY-HRCH-15001
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Laiyuan hot runner coil heater

    Model Number: LY-HRCH-15001

    Place of Origin: Jiangsu, China (Mainland)

  • Condition: New

    Type: Band Heater

    Power Source: Electric

  • Dimension(L*W*H): customize

    Weight: customize

    Voltage: 110~400V

  • Power(W): 1000W/M

    Certification: CE,ROHS

    Warranty: 1 year

  • After-sales Service Provided: Overseas third-party support available

    product name: Electric dryer heating element

    OEM&ODM: yes

  • Maximum using Temperature: 700°C

    Resistance Wire: Ni Cr 80-20

    Length Tolerance (Straight): 5%

  • Resistance Tolerance: + 10% (+ 5% Available Upon Request)

    Dimensional Tolerance: Coil I.D + 0.1 to 0.2mm/Coil Length + 1mm

    Wattage Tolerance: + 10% (+ 5% Available Upon Request)

  • Insulation: > 5 M W

    Thermocouple: K or J type

Packaging & Delivery

  • Packaging Details: standard package for Electric dryer heating element
  • Delivery Detail: 7 working days

Specifications

            Electric dryer heating element



Product Description



Electric dryer heating element:

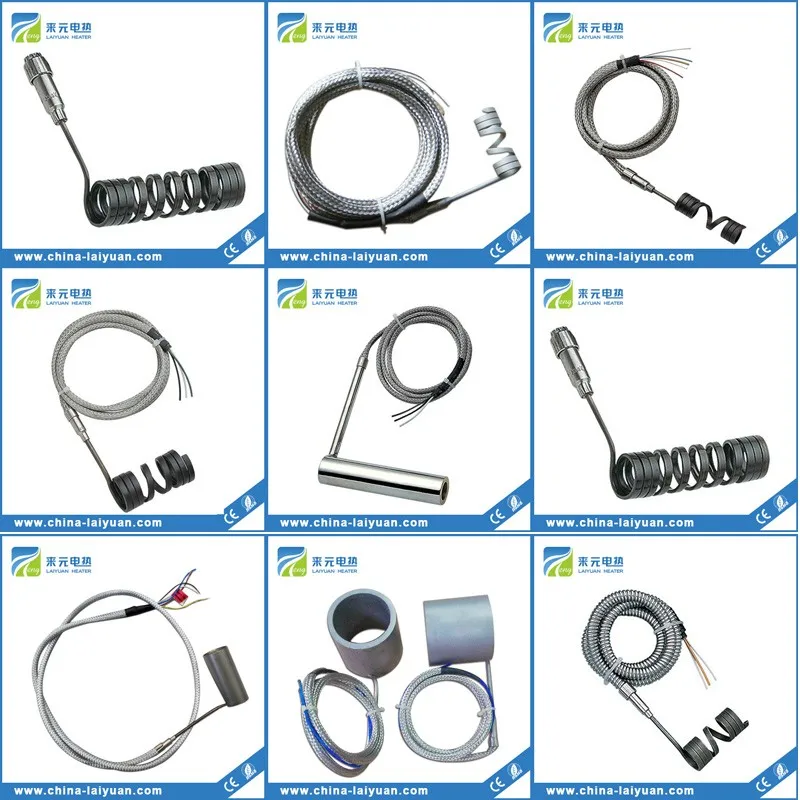

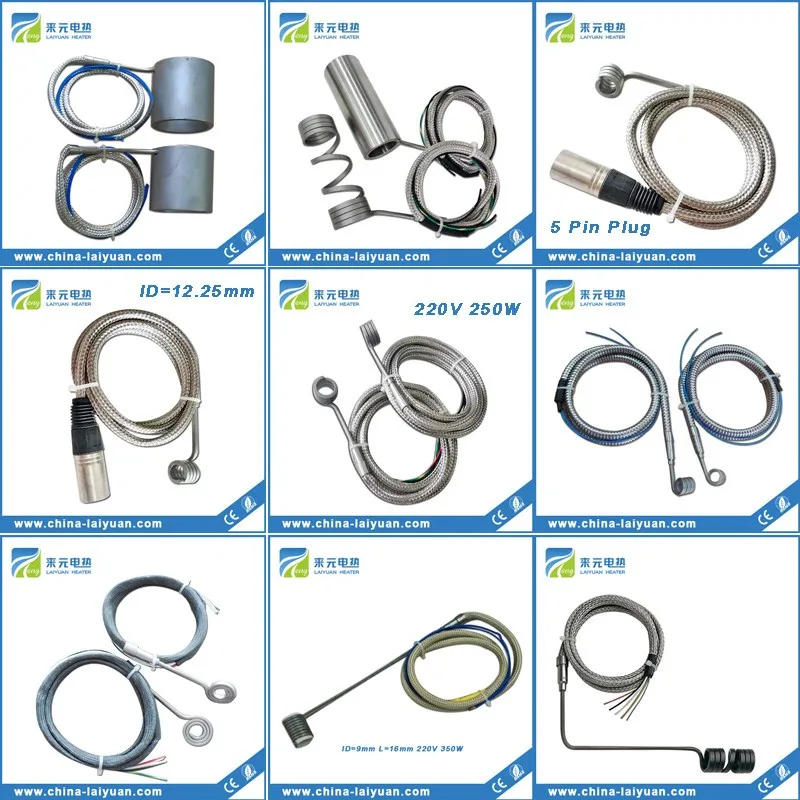

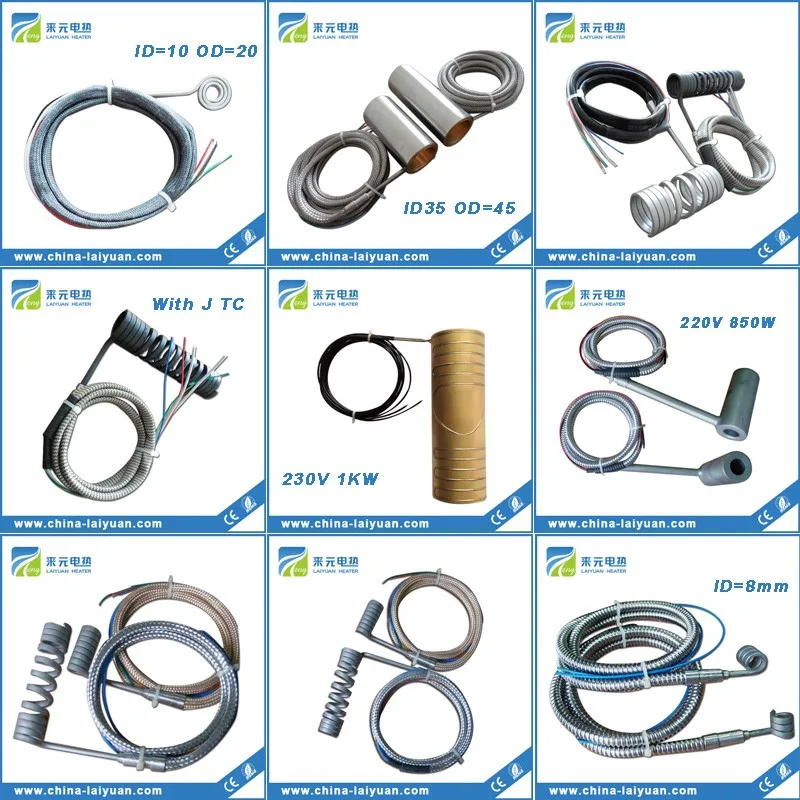

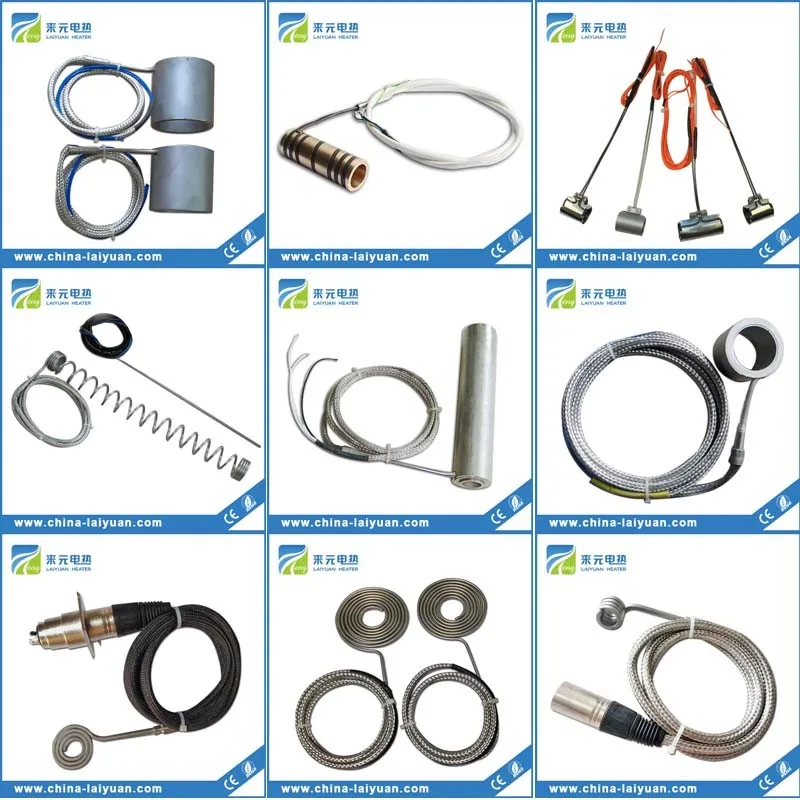

 Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters. These heaters are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube. These heaters can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.

Applications of Electric dryer heating element:
• Hot runner
• Nozzle heating
• Injection moulding
• Heat sealing
• Sprue bushing
• Automotive, medical industry

Electric dryer heating element - FEATURES:

1. Standard sizes available with various cross section

2. Various Watt Density options available

3. Robust Design with Choice of Terminal Exits

4. Available with built in Thermocouple

5. Designed for even heat profile

6. Precision fit on Hot Runner Nozzles & Manifolds

7. Highly Non-corrosive

 8. Maximum heat transfer due to more contact area

9.Advanced Thermal Engineering



















Appilication





Certifications





Packaging & Shipping







Company Information

Yancheng Laiyuan Electric Equipment Co.,Ltd. was established in 2005, lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Tubular heater, Thermocouple, Immersion Heater, Band Heater, Ceramic Infrared Heater ,High-temperature Cable and other heating elements.

Yancheng Laiyuan is by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements for customers to create maximum value .

Yancheng Laiyuan is by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements for customers to create maximum value .

“QUALITY WITHOUT COMPROMISE”, Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect laiyuan brand .


Our Services







FAQ



1.Laiyuan is Factory or Trade enterprise?

Laiyuan is an enterprise incorporating Factory and Trade .

2.Where is your factory located? How can I visit there?

Our factory is located in Yancheng City, Jiangsu Province, China .

It is closed to Shanghai ,only 4hours if by bus.

3.Which Certificate of your product does your company have?

ISO9001,CE,ROHS.CCIC

4.Before order, we need sample for test ,is it ok?

Yes, of course. We provide sample for test before bulk order.

5.How does your company to control your product quality?

Quality is the cornerstone of the survival and development of Laiyuan .

We control quality from the beginning to the end all the time.
