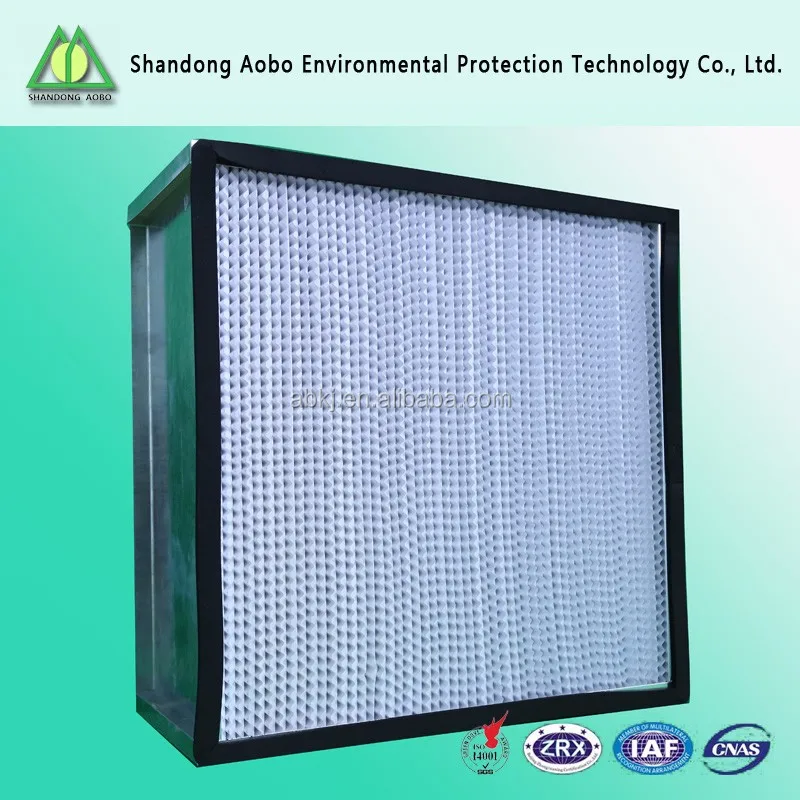

High efficiency conbined HEPA filter used in air conditioning filters

FOB Price:

US 30-40 / Unit

Min.Order Quantity:

50 Unit/Units

Supply Ability:

100000 Unit/Units per Week

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

AOBO

Products Model:

HEPA filter

Products Details
Company Profile

Quick Details

Brand Name: AOBO

Model Number: HEPA filter

Place of Origin: Shandong, China (Mainland)
Condition: New
Efficiency: 99.99%
Construction: Box Filter
Filtration Grade: Hepa Filter
Medium Material: Fiberglass filter paper or PP
Porosity: 0.3u
Dimension(L*W*H): Standard Size, 592*592*295mm/296*592*295
Weight: 2kg, Negotiable
Certification: ISO9001, EN779/ISO9001
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Final resistance: (suggested) ≤600PA
Temp. resistance: ≤70℃
Humidity: ≤100%RH
Initial pressure (Pa): ≤220
Final pressure(Pa): ≤600
Partition materia: Hot melt rubber
Sealant: Polyurethane rubber

Packaging & Delivery

Packaging Details: PE bag and Cardboard
Delivery Detail: Shipped in 7 days after payment

Specifications

Product Description

Model	Outside Dimensions(mm)	Rated air flow(m3/h)	Initial resistance(Pa)	Efficiency(class)	Dust capacity(g)
	610×610×50	700	<=220 or<=140（HV）	≥99.99	450
	915×610×50	1000	<=220 or<=140（HV）		680
	1220×610×50	1400	<=220 or<=140（HV）		900
	610×610×69	1000	<=220 or<=140（HV）		560
	610×610×69	1500	<=220 or<=140（HV）		840
	1220×610×69	2000	<=220 or<=140（HV）		1120
	610×610×80	1200	<=220 or<=140（HV）		650

Specification
Type: High performance compact panel filter
Media: Wet-laid glass fiber paper
Frame: Aluminum/Stainless steel/Cardboard/ABS
Separator: Hot-melt glue
Protective screening: High strength metal retainer with painting processed
Recommended final pressure drop: 350Pa
Temperature: 90ºC maximum in continuous service

Application
For limited space of air supply system

Advantages
95 pleats/feet,20% higher than normal product, bring lower resistance and longer life
Ultra-fine glass fiber paper, good stability of filtration efficiency
Perfect structure of "V" shape, effectively reduce the system resistance
Light, compact structure
Double side retainers

Shandong Aobo Environmental Protection Technology Co., Ltd. is professional in the research, development, and production of filter materials. Our company's main products are divided into two series, air filters and smoke dust filters. Main products include air filters and smoke dust filters. Specific products include initial effect, medium effect, and high effect as well as anti-static glass fiber, special fiber filters and filter bags as well as some coating composite materials with special function.

Shandong Aobo Environmental protection Technology Co., Ltd. is committed to the environment protection career in the motherland of China and would be actively involved to make a contribution to environment protection with friends from all over the world.

Certifications

PACKING & DELIVERY

Packaging Details: vacuum or compressed packaged in double polybag. The roll size is up tocustomer requirement,

Packing exterior: Poly woven Bag or Paper carton as customer's request

Shipping:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Time: 1-7 days for samples; 7-15 days for batch goods.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
