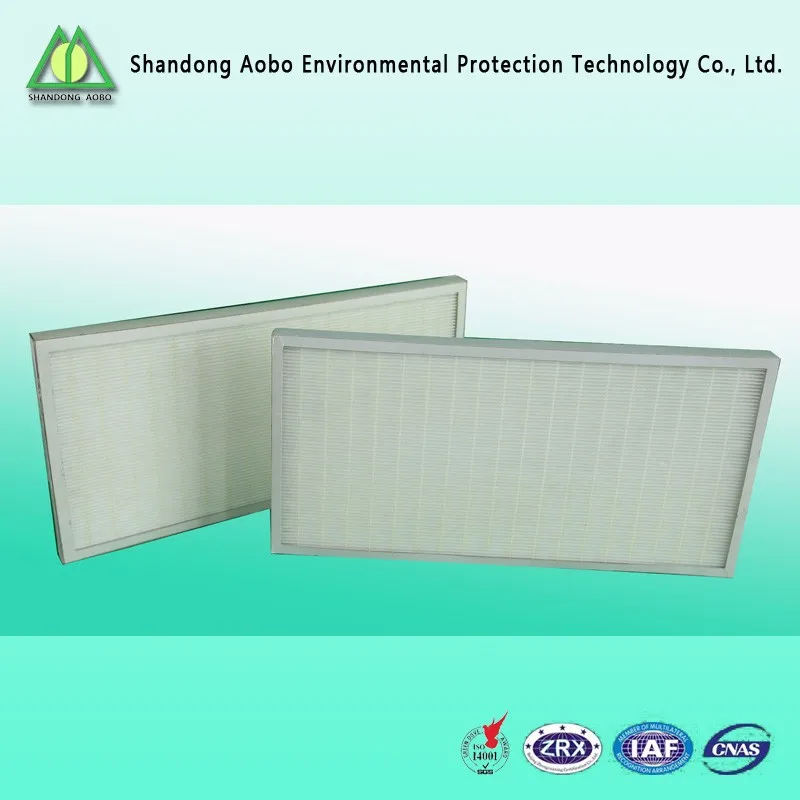

Disposable Cardboard frame F9 hepa Filters for HVAC

FOB Price:

US 15-30 / Unit

Min.Order Quantity:

1000 Unit/Units

Supply Ability:

10000 Unit/Units per Week

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

AOBO

Products Model:

AOBO F9 HEPA Filters

Products Details
Company Profile

Quick Details

Brand Name: AOBO

Model Number: AOBO F9 HEPA Filters

Place of Origin: Shandong, China (Mainland)
Condition: New
Efficiency: 95%
Construction: Panel Filter
Filtration Grade: Hepa Filter
Medium Material: Synthetic Fiber
Porosity: 0.3u
Dimension(L*W*H): 610*610*20, 300*300*20
Weight: 3kg, 3kg
Certification: ISO9001, ISO14001, ISO9001, ISO14001
Warranty: 1 Year
After-sales Service Provided: Overseas third-party support available
Application: For HVAC,cleaning room and laboratory
Size: 610*610*20,can be customized
Frame: customized Cardboard,
Separator: Thermosol
Sealed material: Neoprene/polyurethane
Max.operating: 80 ℃
Supply type: Factory customized

Packaging & Delivery

Packaging Details: Inter plastic bag,outer woven bag Or packing according to the requirements
Delivery Detail: Shipped in 15 days after payment

Specifications

Product Description

Compound high-efficiency HEPA material, according to PM2.5 environmental requirements, has very good adsorption, filtering effect is better. High efficiency, low resistance, oil repellent, anti-dust. Prevent large dust particles into the motor compartment damaging the motor, so as to ensure air purifier lifespan.

Product Features

Precise and high efficiency pleating of board paper and extruded aluminum profiles with automatic pleat forming machine.

Wave-like separator design can saaure the precise pleat distance, making full use of filtration media under minium drag force.

Features and benefits:

Filter Classes H10-H14( EN 1822)
Tested for leak proof
Powder-coated protective grid on both sides
Continuous foamed-in-place seal on one side
Each filter includes a label noting tested efficiency,pressure drop,rated airflow.
