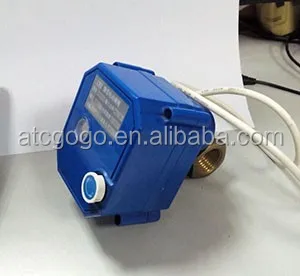

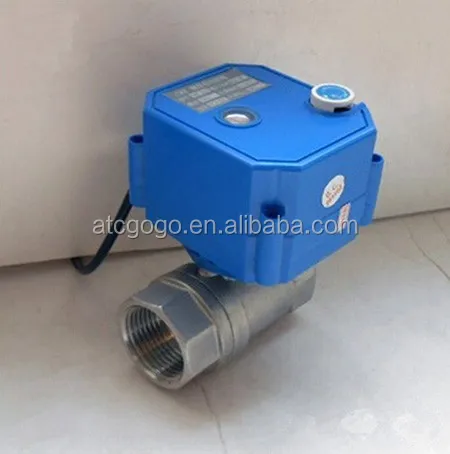

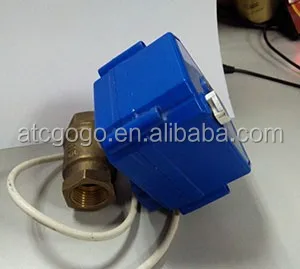

CWX-25S 12v DC 1" 2-way NPT stainless steel electric/ motorized ball valve with manual override

FOB Price:

US 5-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

CWX-25S

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: CWX-25S

Place of Origin: Zhejiang, China (Mainland)
Standard or Nonstandard: Standard
Structure: Control
Pressure: Medium Pressure
Power: Pneumatic
Material: Stainless Steel
Temperature of Media: Medium Temperature
Media: Water
Port Size: 1/2’ 3/4’ 1’
Operating Temperature: 0~90°C
type: normal colse
For: Air ,gas ,oil ,water
Voltage: DC3-6V 12v AC/DC9-24V AC220V
Wiring: CR01, CR02 ,CR03 ,CR04 , CR05
Max Working pressures: 10bar

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: --

Specifications

CWX-25S 12v DC 1" 2-way NPT stainless steel electric/ motorized ball valve with manual override

Features:
Mini dimension suits for small equipment
Patented technology-floating seal structure
Long service life 100,000 circles
Low working current, only 60 to 80mA
IP65 and F type are available
Manual override function is safe and easy

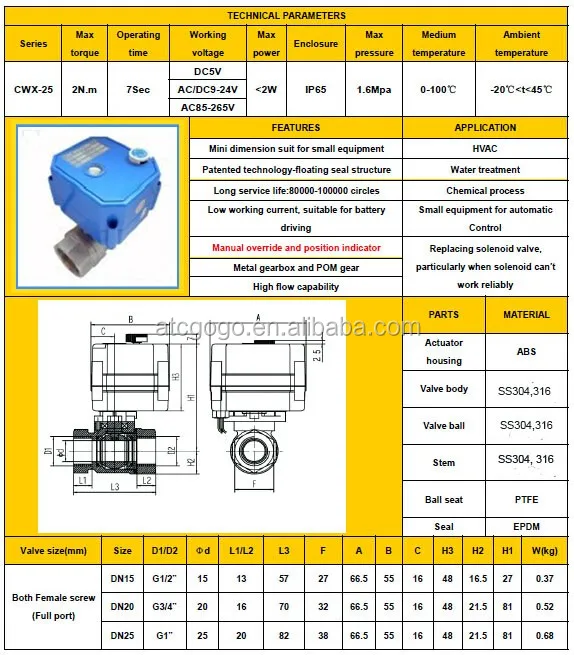

Specification

Product size : G bsp/npt 1/2" 3/4' 1"

Maximum working pressure : 1.0Mpa

circulation means : fluid, air

rated voltage : DC3-6V 12v AC/DC9-24V AC220V

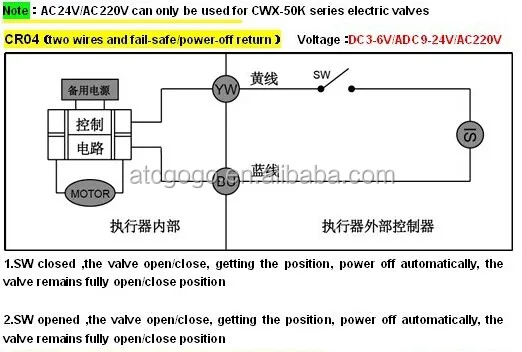

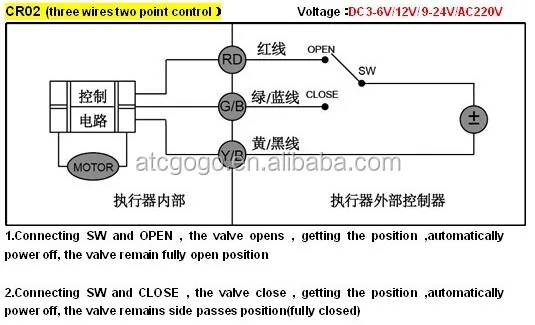

Wiring Control Methods : CR-01,CR02 ,CR03 ,CR04 , CR05

Working current : <80mA

Open / close time : <8s

Life time : 100000 veces

Valve body material : SS304;BRass

Actuator Material : engineering plastics

Seal Material : EPDM y PTFE

Rotation of actuator : 90

Max. par force : 2 n. m

Cable length : 0.5 m

Ambient temperature :0~ 90°c

Rotation direction: double acting

Max. Torque output : 2.5 n. m

Medium temperature: 0-90°C

Manual override : Yes

Special function:position indicator;quick open

Protection class : IP65

Dimensions

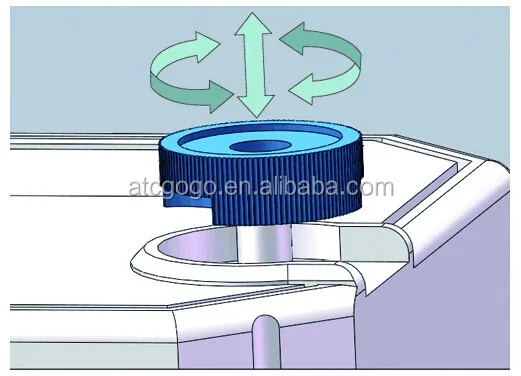

Manual operation schematic diagram:

1. It is only permitted to use when power off.
2. Lift the hand-wheel, and turn it left or right until the valve is in place.
3.When the black line on the indicator is horizontal the valve is on; when vertical,
the valve is off.
4. Press down hand-wheel after using manual override in order to work properly when power-on.

cables

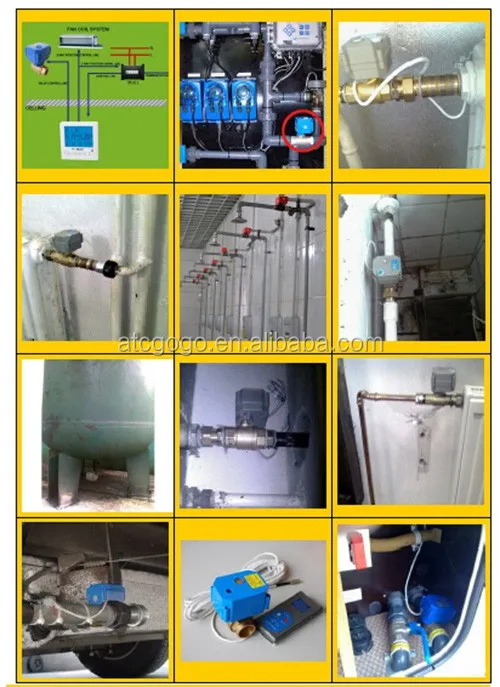

For occasions
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation equipment, environmental protection.
