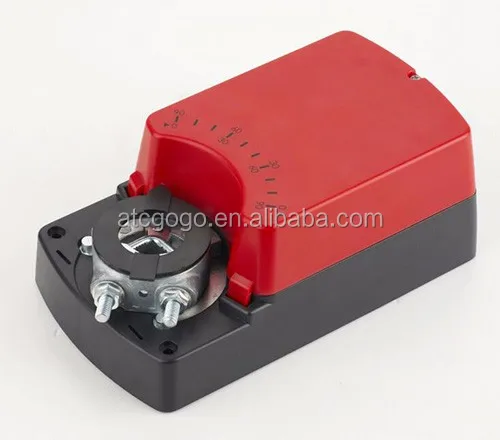

Motorized ball valve , 8Nm Fast Running Damper actuator

FOB Price:

US 5-100 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

DA8MQU220-D

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: DA8MQU220-D

Place of Origin: Zhejiang, China (Mainland)
Torque: 2-24Nm
Control: 2 point/3point /Floating/Modulating
Control signal: 0(2)...10VDC 0(4)...20mA
Power supply: 24VAC/DC 48VDC 100...240VAC
Shaft: round and square
Adjustable angle of rotation: 0- 90°
frequency: 50/60HZ
operation hours: 8S
life: Rotate 60,000 times
noise: 45dB

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: --

Specifications

Motorized ball valve , 8Nm Fast Running Damper actuator

Overview:
The damper drives are mainly used in automatic control of HVAC dampers

Features:
Easy installation: through the universal shaft holder fixed to the throttle shaft.
Manual control: manual operation via buttons when needed.
High reliability: drive with overload protection, no limit switches, run to the end of their own to stop.
Mechanical limit: Built-in adjustable mechanical limit mechanical limit.
Output signal: in the range of 0-100% can output a switching signal.
-DS Type contains a set of auxiliary switch

Technical Parameters:

Torque: 8Nm
Life: a rotating 60,000 times
Wind board area: 1.5m2
Running time: 8S (90º)
Power supply: AC 220V
Frequency: 50 / 60HZ
Control signal: 2:00 or 3:00
Direction of rotation: manually adjustable
Manual operation: with
Rotation angle: 0- 90 °, maximum 95º rotation angle can be adjusted by adjusting the mechanical limit
Position indicator: mechanical indication
Running state power: 5W, 0.5W standby
Noise: 45dB
Protection level: Ⅱ
Protection: IP44
Ambient temperature: -20 ~ + 50 ℃
Humidity: 5-95% RH
Damper shaft length:> 50mm
Throttle Week Specifications: 10_20mm circular shaft / 16 × 16 square shaft
Weight: <1.3Kg
Standard: CE compliance


Packaging & Shipping

1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
