Brand Name: LYTTE or LUTE or OEM
Model Number: LTLS
Place of Origin: Shandong, China (Mainland)
Condition: New
Type: Water-Cooled
Cooling Capability(kw): 100-1647KW
Certification: CE
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Refrigerant Type: R22/R134A/R410A/R407C
Compressor: Srew compressor
Power Supply: 3P-380V-50HZ | with voltage allowance ±10%
Cooling Capacity: 100-1647kw
Evaporator: High efficiency shell and tube heat exchanger
Condenser: High efficiency shell and tube heat exchanger
Control System: Thermal expansion valve
Function: Cooling
Application: Wide range for industry, commerce, cold rooms, etc
Certificates: CE, ISO9001, CRAA

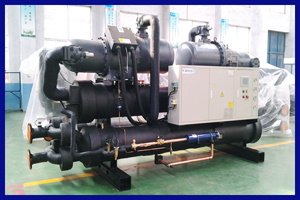

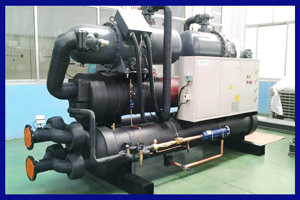

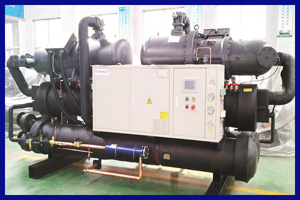

R22/R407C hitachi water cooled chiller for Industrial Use
WATER COOLED CHILLERS
Single Screw Compressor:
LTLS30W(R)S-LTLS200W(R)S
Double Screw Compressors:
LTLS60W(R)D-LTLS460W(R)D
Model Specification
LT L S---30 W(R) S
Notes: LT--LVTE Company Products Code
L--Screw Compressors
S--Chiller, Cooling Only
30--Normal Cooling Capacity USRT
W--Water Cooled
R--Hea t Recovery
S--Single Compressor
Features
1. 30 sizes available ranging from 100 kW to 1600 kW cooling capacity.
2. Wide application as hotel, apartment, villa, factory, shopping center, office building, school, etc.
3. Semi-hermetic screw compressor for all models. Each compressor is equipped with a crankcase heater and a thermal overload cut-out, the screw compress or is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on discharge line.
4. The refrigerant circuit is complete with sight glass, filter drier, high and low pressure gauges, solenoid valve, direct expansion valve, high and low pressure switch.
5. Shell and tube dry expansion type condenser, factory insulated with flexible close cell material.
6. The electric panel consists of compressor breaker, compressor contactor, phase sequence relay, control circuit breaker, microprocessor control with function display.
7. LCD display, touch screen control panel as standard.
8. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
9. For the units with semi-hermetic screw compressor, an infinitely variable capacity control system that is capable of exactly matching the demand requirement of the system is to be supplied. This system is to provide precise and stable control of supply water temperature over the complete range of operating conditions.
System Control
1. Imaged system operation chart, showing the temperature of water in /out, the energy level of compressor run, on/off button, run time, alarm etc .And the remote turn on/off function is available. PC remote control is optional.
2. Notice for maintenance is indicated according to the accumulated run time of the compressor. It is convenience to maintenance.
3. The control system will automatically balance the run time for each compressor for multi-compressor unit.
Safety Protections
1. Discharge check value: it prevents the discharged gas from going back after the compressor stops.
2. Phase lack protection: It protects the compressor for over high voltage , voltage deficiency, and phase lack.
3. Direction protection: It protects the compressor from damage resulted from Counter direction run.
4. Oil heater : It heats the o il before the unit start, keep the good lubrication for the unit before it runs.
5. Overheat protection in side the mot or of the compressor: It protects the compressor from burning down for too high coil temperature for overload, or abnormal run condition.
6. High&low pressure protection: It protects the compressor and system against extreme run condition and trouble.
7. Freezing protection: It protects the unit form too low temperature of the water out, freezing may occur at some place, resulting in freezing breaking of the evaporator.
8. Water flow protect: It protects the unit from run without water flow.
9. High temperature of chilled water protection: It works to protect the compressor in case that the load is too large, the temperature of chilled water is too high . It may result in compressor failure without this protect in the case.
Configuration of Water Cooled Water Chiller
NO. |
Item Name/Components |
Type&Brand |
1 |
Compressors |
Scroll or Screw Type/Copeland or Bitzer |
2 |
Evaporator |
Shell&Tube or Tube in Tube Heat Exchanger LVTE Company |
3 |
Condenser |
Shell&Tube or Tube in Tube Heat Exchanger LVTE Company |
4 |
Expansion Value |
American SPLAN |
5 |
Solenoid Valve |
Italy Castel |
6 |
Drier Filter |
American ALCO |
7 |
Sight Glasses |
American SPLAN |
8 |
Refrigerant Gauge |
China Famous Brand/Jiahe |
9 |
Height&Low Voltage Switch |
Japanese SAGInoMIYA |
10 |
Electrical parts |
Korean LS(LG) |
11 |
Angle Valve |
Taiwan WINO |
12 |
Needle Valve |
Taiwan WINO |
13 |
Oil Pressure Differential Controller |
American ALCO |
14 |
Microcomputer Controller |
Guangdong Bangpu/Siemens |
15 |
Water Flow Switch |
Korean 3S |
16 |
Distribution control box |
LVTE Company |
Company and Factory
1. National High-tech Enterprise, Abundant FinancialResources
Registered capital USD5,000,000, and as a new energy industry, we got financial support from government of
Shandong province. And we specializing in producing HVAC products (Heating, Ventilation and Air Conditioning) ,
including central air conditioning system, water Source HEAT PUMP, Ground Source HEAT PUMP, and Refrigerant
Equipments, including Air Cooled CHILLER, Water Cooled CHILLER,etc.
2. Two Production Bases, Guarantee Supply Ability.
Covering an area of 110,000 CBM workshop, annual production of heat pumps are 30,000 UNITS, chillers are
20,000 UNITS, andrefrigerant equipmentsare 50,000sets, fan coil 500,000 PCS.
3. Strong R&D Research Team
Built an Academician workstation, consisted of domestic famous professors and doctors, and high tech workman,
which can design projects according to customer’s requirement., And built long term cooperation relationship with
famous universities, such as Shandong university, Xi’an Jiaotong university, Qingdao ocean university.
5. Perfect Quality Control System
Invested USD1,700,000 to build the enthalpy differencelaboratory, imported advanced inspection equipments from
America, covering 100% testing item of AHRI, and with a perfect quality control system, from raw material purchase to
production and quality inspection, to ensure the high quality product can reach the international standards.
6. Qualified Export Certificate: CE certificate, and CRAA, ISO9001.
