Brand Name: JKTL
Model Number: Gate Valve
Place of Origin: Hebei, China (Mainland)
Standard or Nonstandard: Standard
Structure: Gate
Pressure: Medium Pressure
Power: Manual
Material: ductile iron
Temperature of Media: Medium Temperature
Media: Water
Port Size: 2’-24’ or DN50-DN600
Application: General
Product name: Awwa C509 150LBS Resilient Seated Non-ring Stem Ductile Iron
Body material: ISO9001, CE
Certificate: Normal Colse
Type: Flanged
Connection: Water
Medium: 2’-24’ or DN50-DN600
Size: Bs5163
Standard: Acceptable
OEM: 0-16bar

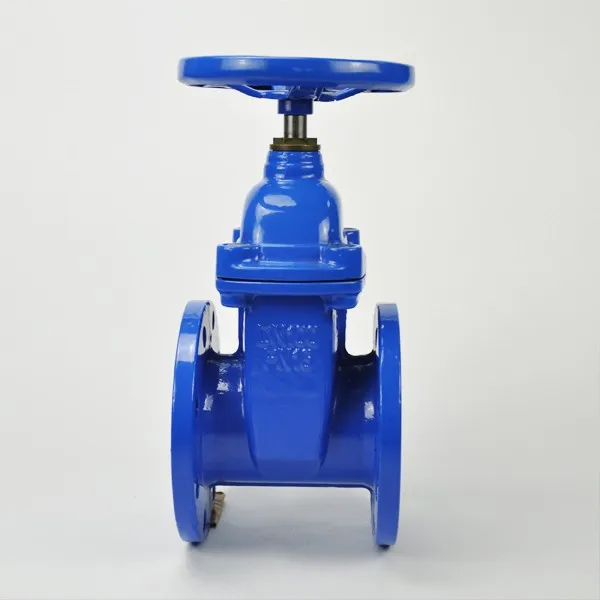

Awwa C509 150LBS Resilient Seated Non-ring Stem Gate Valve

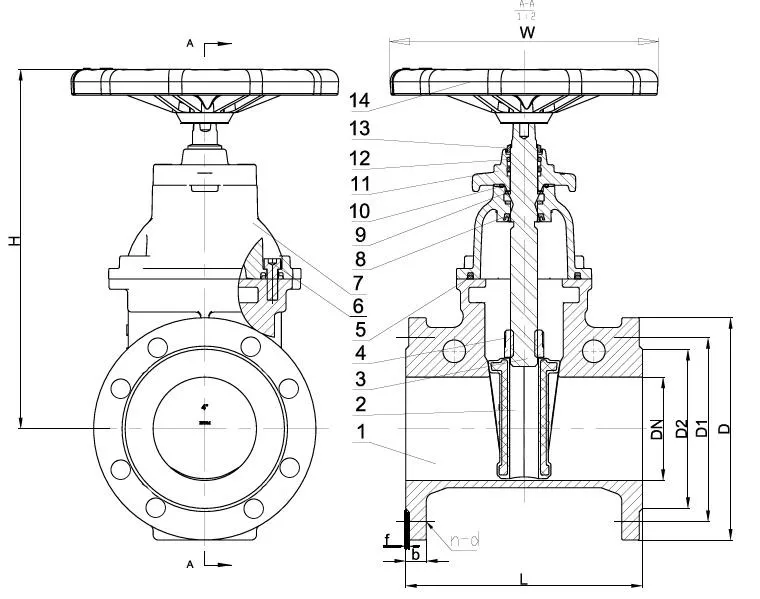

Number
|
Part | Material |
1 | Body | Ductile iron |
2 | Wedge | AS 1831 500-7 + EPDM |
3 | Stem | SS431 |
4 | Stem Nut | Brass |
5 | Bonnet Gasket | EPDM |
6 | Bolt | SS316 |
7 | Bonnet Gasket | EPDM |
8 | Up Sealing | NBR |
9 | Washer | Nylon |
10 | Bushing Nut | Brass |
11 | O-Ring | NBR |
12 | O-Ring | NBR |
13 | Dust Guard | NBR |
15 | Handwheel | Ductile iron |
We use high quality plywood wooden case packing which avoid fumigation. It have good cushioning
performance, high strength, and corrosion resistance. The use of foam film cover the valve better to
protect the valve body and fixing wooden cases is the final step.
1. Inner packing: opp bag, then carton box for each product.
2. Outer packing: export standard carton, Foam outside protecting the goods against damage.
3. Usually we ship your order by sea or by air.
4. We do our best to ship your order within 1 week after receiving your payment.
5. We'll tell you the tracking number once your order has been sent.
6. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
1. Our products have ten years warranty.
2. We have certification of ISO, and according to the rules of ANSI, we can get the ANSI certification.
3. Please feel free to call us if you have any query about the product. Professional answers will
be given to you in any time!
4. Any products you want will come to you! If you have any request, satisfying answer will reach you
from our professional team and research staff ASAP.
5. All the products can be customized!
Hebei Tongli automatic control valve manufacturing Co., Ltd. which was founded in 1995.
The company is a professional manufacturer engaged in the research, production, and sales,
through development and innovation for 20 years, research, production and sales of professional
committed to the heating valve.
The company covers an area of 58000 square meters, 510 employees including 280 engineering
and technical personnel. The marketing team of 180 sales of the elite 90 people, the company
has international advancedtesting equipment 30 sets, 400 sets of CNC machine tools, products
structure, the heating valve products as the leading factor, provides a full range of HVAC system
design and installation, debugging program.
The company has passed the certification of ISO9001:2000 quality system, the two time the license
of special equipment, the people's Republic of China occupational health and safety
management system certification,environmental management system certification.
