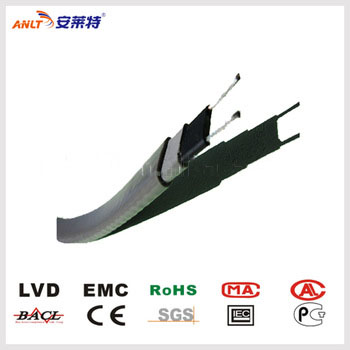

self-regulating heating cable

FOB Price:

US 2-5 / Meter

Min.Order Quantity:

1 Roll/Rolls

Supply Ability:

50000000 Meter/Meters per Month

Port:

Shanghai, Shenzhen, Guangzhou or Ningbo upon your request.

Place of Origin:

Sichuan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Brand:

ANLT

Products Model:

ANLP-J

Products Details
Company Profile

Quick Details

Brand Name: ANLT

Model Number: ANLP-J

Place of Origin: Sichuan, China (Mainland)
Type: Floor Heating Systems
place of orgin: sichuan, China
wattage: 10 17 25 31 40w/m at 10C
Service voltage: 110-120V 220-277V
Max temp: 65 C / 149 F
Max exposure temp: 85 C / 185 F
Number of Conductors: 2*7
Insulation Material: Thermoplastic
Conductor Material: Tinned coppe
Product name: self-regulating heating cable
Application: self-regulating heating cable

Packaging & Delivery

Packaging Details: self-regulating heating cable package: 250m/rell, 1 reel in I carton. Then put dozens of cartons on
Delivery Detail: Depend on order quantity, normally it takes 2-3 weeks.

Specifications

Model No.	Self-regulating Heating Cable
Brand Name	ANLT
Technical characteristics	Operating voltage 230V Max maintain temperature 65℃ (149℉) Max admissible temperature 85℃ (185℉) Max exposure temperature 85℃ (185℉) Intermittent 1000 cumulative hours Min installation temperature -60℃ (-76℉) Nominal voltage 230V Max resistance of braid 18.2Ω/km Bus wire gauge 1.6mm2
Colors select	Black, blue, red
Order Details:
Minimal Order Quantity	The minimal order quantity is 10 rolls
Trade Terms	EXW / FOB / CIF Or you can ask your agency in China to operate for you,such as transport to the destination and apply to customs.
Payment Terms	1. T/T:30% paid in advance, pay off the balance before loading or pay against the B/L copy at sight. 2. West Union and Escrow are used for small amount orders.
Services	1. We provide OEM service. 2. We provide customers with special quality checking work. 3. We provide pre-sales service to help customers find what they need. 4. If there are any other special request for making better cooperation, we will do our best.
Remarks	1. OEM service are available. 2. Less Than Container orders can be acceptable. You can tell us your trust agent in China to arrange the transport or ask them call us. 3. Customer-made cartons, ship mark, and label are available. The minimal order quantity are required. You can forward us before ordering. 4. Assembly instruction is available.
Packing	Color boxes

Model	Dimension	Min.bending radius	Weight (KG/100m)
ANLP-J	11.4×3.8mm	40mm	6.7
ANLP-P	12.2×4.5mm	46mm	8.9
ANLP-PB	13.8×5.7mm	50mm	11.2

Options

* ANLP-J Polyolefin insulation layer with flame retardant material and provide electrical insulating properties.

* ANLP-P Tinned copper braid provides additional mechanical protection and a positive ground wire protection. shield electromagnetism.

* ANLP-PB Anti-corrosion and flame thermoplastic elastomer outer jacket protect from inorganic chemical solutions.Also protect from abrasion and impact damage.

Product information :Self-regulating low temperature series

Power output curve

Product information : Self-regulating medium temperature series

Technical data

Output wattage	10, 17, 25, 31, 40(w/min)
Maximum maintain temperature	65℃ 10, 17, 25, 31, 40(w/min)
Maximum exposure temperature	85℃
Minimum installation temperature	-40℃<
Work voltage	110V-120V / 220V-240V
Max resistance of braid	<18.2Ω/km
Bus wire gauge	1.5mm²

Power output curve

Nominal power output

At 230VAC @+10℃

A = 10DHR

B = 17DHR

C = 25DHR

	Output @+10℃(w/m)	Max maintain temperature(℃)	Max length @+10℃16/30A(m)	Max length @0℃16/30A(m)	Max length @-20℃ 16/30A(m)	Dimension (mm)	Weight (kg/100m)
10DHR-PB	10	65	128/150	110/120	100/110	8.4x5.5	7.5
10DHR-PF	10	65	128/180	110/120	100/110	8.1x5.2	7
17DHR-PB	17	65	105/115	100/105	90/100	8.4x5.5	7.5
17DHR-PF	17	65	105/115	100/105	90/100	8.1x5.2	7
25DHR-PB	25	65	90/100	85/100	55/80	8.4x5.5	7.5
25DHR-PF	25	65	90/100	85/100	55/80	8.1x5.2	7

Certifications

ANLT Product Categories

Electric Floor Heating Mat Electric Floor Heating Cable Digital Thermostat

At ANLT we anticipate your needs and will provide the best products and services.

Located in the Hi-tech Development Zone, Xindu District, Chengdu, ANLT Cable Manufacturing Co., Ltd is a hi-tech enterprise integrating in research and development, manufacturing and sales of heating wire, Temperature Controller and Electric Products. With about 10 years' experience in cable product manufacturing, it boasts of rich powerful technical strength and highly efficient operation and management experiences in the industry and has widely accepted and supported by partners and customers.

The company has introduced a whole set of advanced cable manufacturing equipment and technologies from the Europe abd researches, develops and improves the product structure and manufacturing process independently in combination with actual condition of China. Moreover, it has set up a whole set of highly efficient management system, a strict and comprehensive system combining supply chain, manufacturing and inspection. It has been certified by ISO9001:2000 and owns a complete series of inspection equipment and system inspection procedure. ANLT produces its products in strict accordance with IEC800 standard. Its diversified products have passed the certification by TICW, U.S. BACL Laboratory and Swiss ROHS, it gains the quality insurance from China Pacific Insurance Co.,Ltd.

Adhering to the quality guideline of "Offer the Best Quality, Pursue for Excellence, Strive for Perfection" and business concept of "Honesty as Basis, Technology Prevails and Services Foremost", it offers top ranking products and services to customers for joint progress and mutual brilliance!
