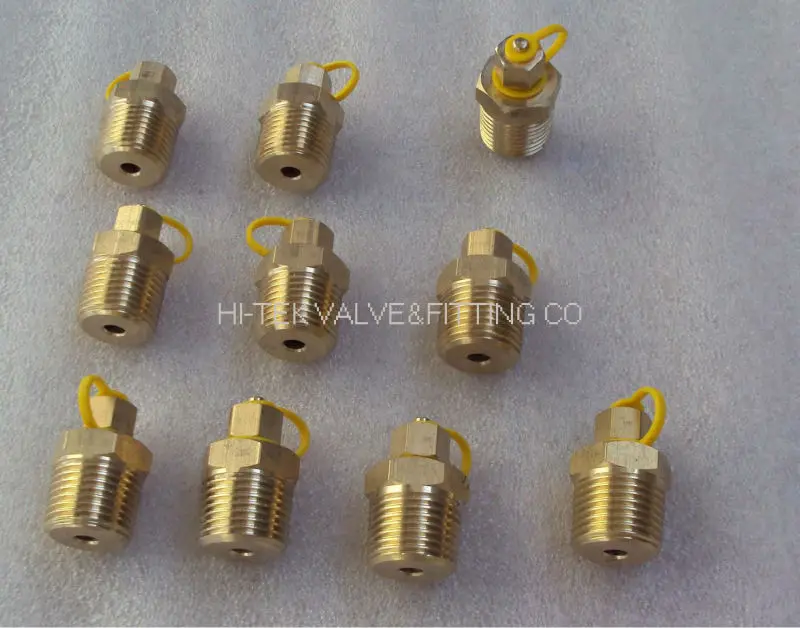

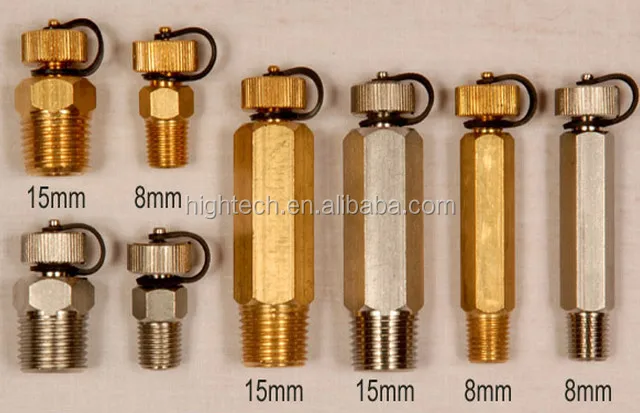

brass pressure/temperature test plugs

FOB Price:

US 0.8-1.2 / Unit

Min.Order Quantity:

500 Unit/Units

Supply Ability:

1000000 Unit/Units per Month

Port:

ningbo or shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

HI-TEK

Products Model:

HK-01003

Products Details
Company Profile

Quick Details

Brand Name: HI-TEK

Model Number: HK-01003

Place of Origin: Zhejiang, China (Mainland)
Standard or Nonstandard: Standard
Structure: Check
Pressure: Low Pressure
Power: Hydraulic
Material: Brass
Temperature of Media: Low Temperature
Media: Water
Port Size: 1/4NPT TO 1/2NPT
Material brass, dzr: Pressure | 1000-1500psig
Temp range -8°C (18°F) up to +135°C: Core: Ethylene Propylene Rubber.

Packaging & Delivery

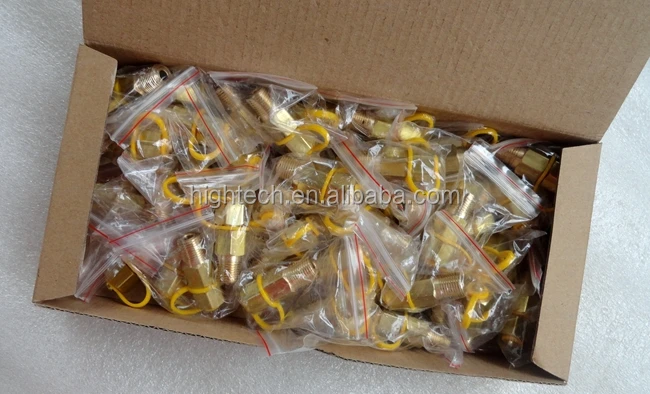

Packaging Details: export packing ,ply-wooden case or carton
Delivery Detail: within 10days

Specifications

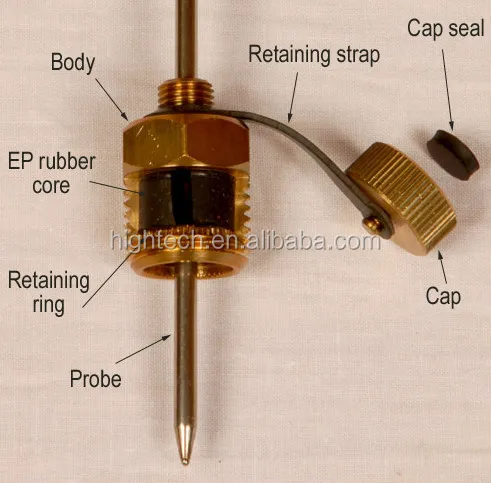

Cap and gaskets
Cap-retaining strap
Two self-closing valves
Valve body
Valve retainer

Instruction:

The cap protects the valve and provides an additional seal. After the cap has been removed,

either a test thermometer or a gauge adapter with the proper pressure gauge can be inserted through the two,

selfclosing valves in the Pete's Plug II. Readings are made, adjustments or test can be accomplished

and when the probes are withdrawn, the two valves close. The protective cap is then reinstalled.

Tests should be made as quickly as possible since the valve reseal time is dependent upon time of insertion, time, and pressure.

Slower valve reseal time can be expected at lower temperature and lower pressures. Cap retaining straps are standard on all brass plugs.
