10Tr Air Cooled Chiller 15hp Copeland Air Industrial Chiller with 5~35c degree out temperature range

10Tr Air Cooled Chiller 15hp Copeland Air Industrial Chiller with 5~35c degree out temperature range

FOB Price:

USD 2000-3000 / Set

Min.Order Quantity:

1 Twenty-Foot Container

Supply Ability:

300 Twenty-Foot Container per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Brand:

MGREENBELT

Products Model:

MG-15C(D) air chiller 15ph

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: MG-15C(D) air chiller 15ph

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Plywooden case 10Tr Air Cooled Chiller 15hp Copeland Air Industrial Chiller with 5~35c degree out temperature range
Delivery Detail: Within 10 working days

Specifications

10Tr 10Ton 15hp Machinery Industrial Chiller Air Cooled Unit Chiller A/C For Electroplating Industry

Product Description

1.Feature Of air chiller 15ph

Imported famous brand compressor,built-in security protection,low noise,power and durability, to increase the service life of equipment.
High efficiency hydrophilic aluminum foll finned type condenser,with an exceptionally strong heat transfer efficiency,long life,washable and so on.
All stainless steel thick tank insulation,built-in automatic water replenishment and protecting devices,cleaning maintenance convenient.
Use high-quality hrand name pumps,flow,low noise,long-lasting durability
LCD display microcomputer controller can arcurately control the temperature.Chinese intPrface,easy operation and control functions are complete.
Germany,Schneider Electric products,with improved electrical protection systems.
Anti-static coating shell,nice,quick installation using the form plate appearance,ease of use and maintenance.
This series of models can be ordered acid chiller.

2. Specification Of air chiller 15ph

---Temperature +5 deg C, -5 deg C:

Chiller Model		MG-15C(D)
Cooling efficiency	kW	41.8(+5 deg C)
Cooling efficiency	kW	28.4(-5 deg C)
Voltage	voltage	220/380/415/440/480
Frequency	Hz	50/60
Refrigeration compressor	Power (kW)	6.81*2
condenser		Finned copper tubes
evaporator	Type	Shell and tube
evaporator	Type	Tank with coils
Cooling water flow	m3/h	7.17
Chiler water pump	Life (m)	20
Pump power	Kw	1.5
Dimension	mm	180010001600
Weight	Kg	750

----Different model air chiller 15ph for optional:

3. Photo Showing Of air chiller 15ph

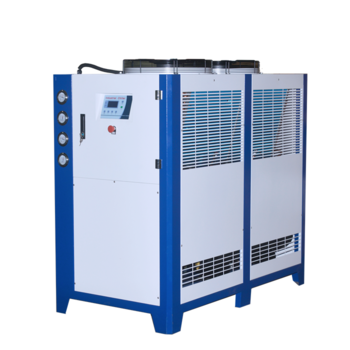

---Equipment show

air chiller 15ph

---Controller of air chiller 15ph

Micro-computer, and PLC optional

Please send the below details, so that we can process the offer for you.
1. Which place these chiller need to be installed.
2. Cooling capacity
3. Flow rate
4. Inlet/outlet water temperature
5. Power supply
6. Any special requirements

Waiting for your reply, we have many chillers applied to plastic processing industries, hope we also have the honor to work with you.

Contact: Libra Zhang
Email: chillercompressor@gmail.com
Wechat/ WhatsApp/ Telegram: 0086 18769762328
Skype: libra5813

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
