Castel regulating valve (CREG15-40)

FOB Price:

Open price

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Month

Port:

Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T

Brand:

Castel

Products Model:

CREG15-40

Products Details
Company Profile

Quick Details

Brand Name: Castel

Model Number: CREG15-40

Place of Origin: Zhejiang, China (Mainland)
Type: HVAC Systems

Packaging & Delivery

Packaging Details: Standard exporting packing
Delivery Detail: Deliver goods in 30 days after receiving 30% deposit

Specifications

CREG are equipped with internal backseating enabling the spindle seal to be replaced with the valve still under pressure.

About us

About product

Introduction

CREG are angle-way and straight-way regulating valves,which act as normal stop valves in closed position.The valves are designed to meet the strict quality requirements on refrigerating installations and are carefully designed to present favourable flow conditions and accurate linear characteristics.

CREG are equipped with internal backseating enabling the spindle seal to be replaced with the valve still under pressure.

Feature

Applicable to all commom om flammable refrigerants including R717 and non corrosive gases/liquids dependent to sealing material compatibility.
Designed to ensure perfect regulation
Internal backseating enables replacement of the spindel seal whilst the valve is active,i.e. under pressure.
Easy to disassemble for inspection and possible repair
Max.operating pressure:CREG:40 bar g (580 psi g)Full temperature range packing gland -46/+150°C

Housing

Made of special,cold resistant steel.

Valve cone

The valve cone can be turned on the spindle,thus there will be no friction between the cone and seat,when the valve is opened and closed.

Spindle

Made of polished stainless steel so that PTFE and Graphite gaskets are not damaged.

Sealing

Splindle sealing is done with PTFE and Graphite gaskets assuring 100% saeling.

Material specification

NO	PART	MATERIAL	GRADE	QTY
1	HOUSING	STEEL	ASTM A350 LF2,LCC	1
2	BONNET	STEEL	ASTM A350 LF2,LCC	1
3	SPINDLE	STAINLESS STEEL	AISI 303	1
4	CONE	STEEL	AISI 1213	1
5	PACKING GLAND	STEEL	AISI 1213	1
6	CONE SEAL	PTFE	CARBON FILLED PTFE	1
7	NEEDLE PIN	STEEL	AISI 1213	1
8	WASHER	STAINLESS STEEL	AISI 304	1
9	GASKET	PTFE		2
10	GASKET	GRAPHITE		1
11	ALLEN SCREW	STAINLESS STEEL	AISI 304	1
12	PACKING WASHER	PTFE		1
13	GASKET	PTFE	CARBON FILLED PTFE	1
14	HANDWHEEL	STEEL		1
15	NAME PLATE	ALUMINIUM		1
16	WASHER	STEEL		1
17	HANDLE LOCKING SCREW	STEEL		1
18	LOCKING SCREW	STAINLESS STEEL	AISI 304	1

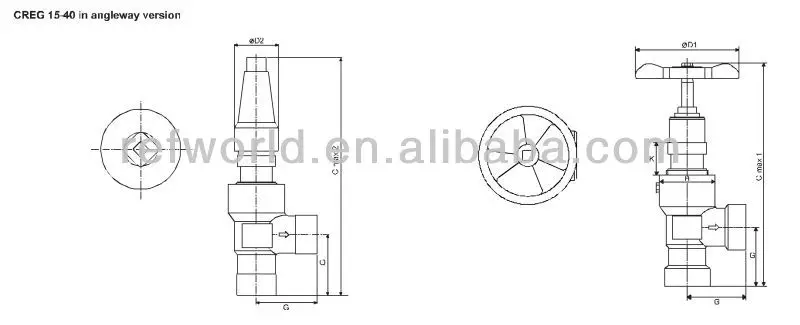

Dimensions and weight

Valve size	K	Cmax1	Cmax2	G	øD1	øD2	H	Weight

Valve size

Cmax1

Cmax2

øD1

øD2

Weight

CSVA-Socket weld

CSVA 15 20 mm	25.4	193	207	53	90	3805	47	1.3kg
CSVA(½-¾) in	1	7.59	8.14	2.08	3.54	1.51	1.85	2.9lb
CSVA 25 mm	25.4	193	210.5	49	90	38.5	47	1.5kg
CSVA(1) in	1	7.59	8.28	1.92	3.54	1.51	1.85	3.3lb
CSVA 32 mm	30	240	286	58	110	50	62	2.6kg
CSVA(1½) in	1.18	9.44	11.25	2.28	4.33	1.96	2.44	5.72lb
CSVA 40 mm	30	240	286	58	110	50	68	2.9kg
CSVA(1½) in	1.18	9.44	11.25	2.28	4.33	1.96	2.67	6.38lb

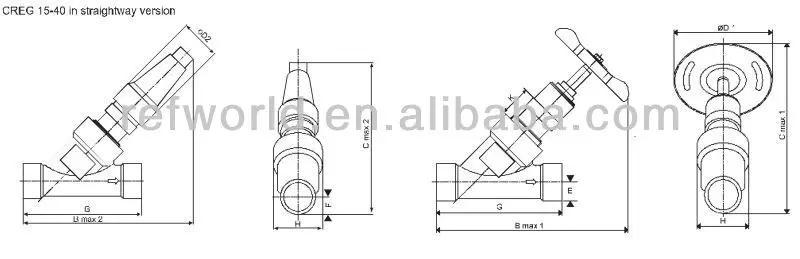

Valve size	K	Cmax1	Cmax2	Bmax.1	Bmax.2	G	E	øD1	øD2	H	Weight

Valve size

Cmax1

Cmax2

Bmax.1

Bmax.2

øD1

øD2

Weight

CSVA-Socket weld

CSVA 15 20 mm	25.4	141	146	163	164	114	17	90	3805	47	1.3kg
CSVA(½-¾) in	1	5.55	5.74	6.41	6.45	4.49	0.67	3.54	1.51	1.85	2.9lb
CSVA 25 mm	25.4	160	157.5	164	172	126	18.3	90	38.5	47	1.5kg
CSVA(1) in	1	6.3	6.2	6.45	6.77	4.96	0.72	3.54	1.51	1.85	3.3lb
CSVA 32 mm	30	202	219	172	239	160	24	110	50	62	2.6kg
CSVA(1½) in	1.18	7.95	8.62	6.77	9.4	6.3	0.94	4.33	1.96	2.44	5.72lb
CSVA 40 mm	30	210	223.5	218	232.5	150	27.4	110	50	68	2.9kg
CSVA(1½) in	1.18	8.26	8.79	8.58	9.15	5.9	1.07	4.33	1.96	2.67	6.38lb
