Home > Products > Refrigeration Equipment > Cold Storage

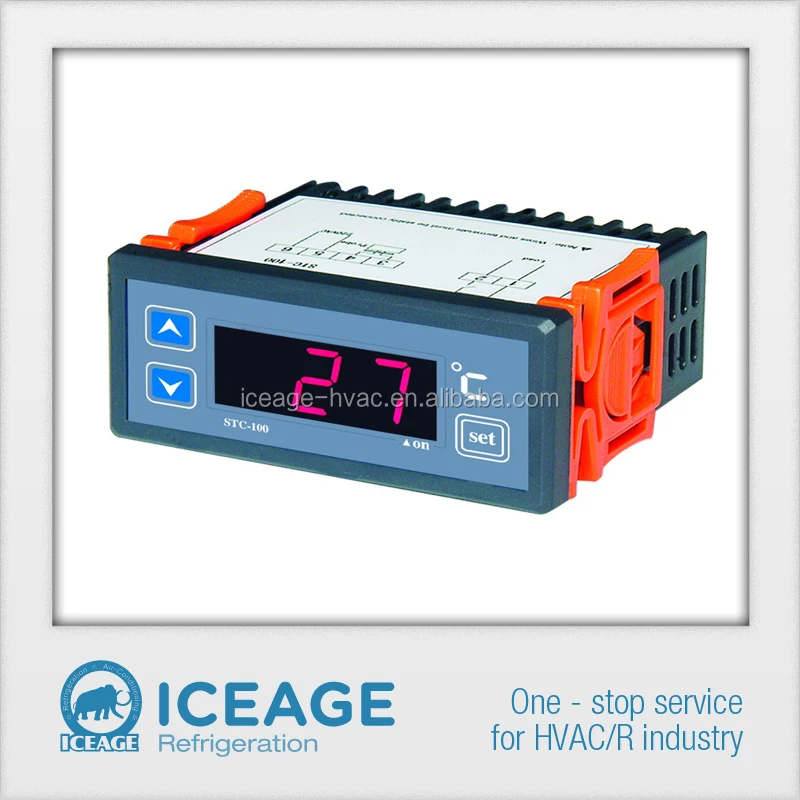

STC-100A compressor delay protection air conditioner temperature controller

FOB Price:

US 4-25 / Piece

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

60000 Set/Sets per Month

Port:

Ningbo,Shanghai,etc

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

Neutral for air conditioner temperature controller

Products Model:

STC-100A air conditioner temperature controller

Products Details
Company Profile

Quick Details

Brand Name: Neutral for air conditioner temperature controller

Model Number: STC-100A air conditioner temperature controller

Place of Origin: Zhejiang, China (Mainland)
Usage: Industrial
Theory: Temperature Controller
Accuracy: -40~70°c, ±1°c, ±0.5dig | others, ±2°c, ±0.5dig, -40~70°c, ±1°c, ±0.5dig | others, ±2°c, ±0.5dig
Temperature range: -40~99°c
Temperature measuring range: -40~99°c
Resolution: 1°c
Sensor type: NTC,2M
Power supply: 220VAC+10%/-15%, 50/60Hz
Operating temperature: 0~60°c
Storage temperature: -30~75°c
Relative humidity: 20~85% (no condensate)
ICEAGE website: www.iceage-hvac.com

Packaging & Delivery

Packaging Details: Digital temperature controller, Individual colorful paper box, then put into cartons.
Delivery Detail: 7-35 days

Specifications

Product Description

STC-100A compressor delay protection air conditioner temperature controller

Introduction

-Model no.: STC-100A compressor delay protection air conditioner temperature controller

-Application: Suitable for all kinds of cold storage, refrigerator, water chiller, seafood machine, small heating equipments.

-Certifications: passed ISO9001 quality system certification, and more than 95% of the products have passed CE certificate, some export products by the United States UL certification, to produce environmentally friendly products in full compliance with EU RoHS directive.

Feature

-Refrigerating, heating output mode optional;

-Return difference to control temperature;

-Temperature upper and lower limits setting, in order to avoid disoperation by non-professionals;

-Compressor delay protection;

Technical Parameters

-Temperature measuring range: -40~99°c;

-Temperature controlling range: -40~99°c;

-Resolution: 1°c;

-Accuracy: -40~70°c, ±1°c, ±0.5dig; others, ±2°c, ±0.5dig ;
-Compressor output contact capacity: 10A (0.5HP)/220VAC
-Power supply: 220VAC+10%/-15%, 50/60Hz;
-Sensor type: NTC sensor (1PCS), sensor length 2m;
-Operating temperature: 0~60°c;
-Storage temperature: -30~75°c;
-Relative humidity: 20%~85% (No condensate).

Packaging & Shipping

-Mounting size:71(W)×29(H)mm;
-Product size77(W)×34.5(H)×62(D)mm;

Individual colorful paper box, then put into cartons.

Company Information

Factory

Workshop

R&D Center

Testing Room

ICEAGE also supply one-stop service for other spare parts of HVAC/R field to meet different customers' need.
