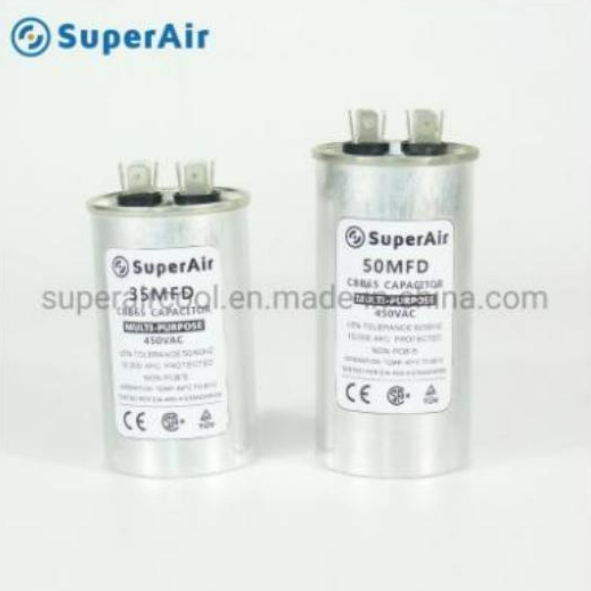

Fan Motor Capacitor Aluminum Capacitor Cbb65 AC

370V/440V CBB65  Aluminum Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

• None induction winding structure of metallic polypropylene membrane
• Credible insulation performance, super electric performance with ability of self-heating and safety explosion proof equipment
• Excellent heat dispersion, small volume, wide range of capacity, low loss stable capacitance
• With stand impact current, strong overload performance and long live span
• Suitable for starting and operating 50Hz or 60Hz AC single phase electro-motor

• Working Temperature: -25 ºC to 70 ºC
• Capacitance Tolerance: J:±5% K:±10%

• Capacitance	Voltage	Dimesion	Voltage	Dimesion	Terminal	Master Box
  5uf	370V	45X55	440V	45X55	2X4	100
  7.5uf	370V	45X55	440V	45X55	2X4	100
  10uf	370V	45X55	440V	45X55	2X4	100
  12.5uf	370V	45X65	440V	45X65	2X4	100
  15uf	370V	45X65	440V	45X65	2X4	100
  17.5uf	370V	45X65	440V	45X65	2X4	100
  20uf	370V	45X65	440V	45X65	2X4	100
  25uf	370V	45X85	440V	45X85	2X4	100
  30uf	370V	45X85	440V	45X90	2X4	100
  35uf	370V	45X105	440V	45X105	2X4	100
  40uf	370V	45X105	440V	45X105	2X4	100
  45uf	370V	45X105	440V	45X105	2X4	100
  50uf	370V	45X105	440V	45X105	2X4	100
  55uf	370V	45X105	440V	45X105	2X4	100
  60uf	370V	45X105	440V	45X105	2X4	100
  65uf	370V	45X105	440V	45X120	2X4	100
  70uf	370V	45X105	440V	45X120	2X4	100
  80uf	370V	45X105	440V	45X130	2X4	100

•
