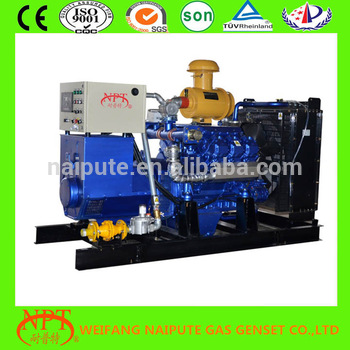

Brand Name: NPT 100 kw generator price
Model Number: 120GFT
Place of Origin: Shandong, China (Mainland)
Output Type: AC Three Phase
Speed: 1500 rpm
Frequency: 50 Hz
Rated Power: 120 kW
Rated Voltage: 230/400 V
Rated Current: 217 A
Starting Mode: Electrical 100 kw generator price
Exciting method: AVR brushless
Cooling method: Water cooled
Cylinder number: 6
BoreXStroke(mm): 132x145
Dimension(LxWxH)mm: 2450x11250x1750
Weight(kg): 1680
Total displacement(L): 11.9
Fuel: Natural gas
Certification: ISO9001& CE
Technical parameter for 100kW Natural gas generator set
Generating set general Model |
100GFT |
|
Structure |
integral |
|
Exciting method |
AVR Brushless |
|
Rated Power (kVA/kW) |
150/120 |
|
Rated Current(A) |
216 |
|
Rated Voltage(V) |
230/400 |
|
Rated Frequency(Hz) |
50 |
|
Rated Power Factor |
0.8 LAG |
|
Overall dimension (L x W x H)(mm) |
2450x1250x1750 |
|
Net weight (kg) |
1680 |
|
Gas Engine |
Model |
ND119D14 |
Type |
V type 4 stroke,electric control ignition,pre-mixed stoichiometry burn |
|
Cylinder number |
6 |
|
Bore x Stroke (mm) |
132X145 |
|
Total displacement (L) |
11.9 |
|
Rated Power (kW) |
140 |
|
Rated Speed (r/min) |
1500 |
|
Fuel Type |
Natural gas |
|
Control panel |
NPT Brand120KZY |
LCD display |
Circuit Breaker type |
ATS/SKT1-250 |
|
Control module |
Smartgen HGM6320 |
|
Operation language |
English |
|
Alternator |
Model |
XN274F |
Brand |
MBH( Germany) |
|
Shaft |
Single bearing |
|
Rated Power (kW) |
128 |
|
Rating(kVA) |
160 |
|
Enclosure protection |
IP23 |
|
Efficiency (%) |
92.3 |
1.12 months or 1500 running hours warranty covering all manufacturing defacts(whichever comes first)since leaving China port;our company provides free easily-damaged parts for the faults caused by the quality of products or raw material, but exclude the damageable parts of engine due to the customer’s incorrect man –made operation.
2.1 year maintenance spare parts and technician support(send technician to your country or train your technician both in China and abroad )for overseas market; After expiration, our company provide spare parts with cost for maintenance forever.
Function :
1. Adopt Genset controller with LCD display, taking microprocessor as the core.
2. Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity
3. The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity /grid electricity
4. The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts
5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.
Optional devices :
CHP device, Soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc
Application area:
Natural gas generator : Pipeline natural gas, liquid natural gas (LNG),coal mine industry, crude oil industry
Biogas generator : dairy and poultry farm, food processing ( starch, alcohol, palm oil ),industrial waste, Bio garbage processing, landfill
LPG generator : Crude oil industry
Biomass generator: agriculture straw, wood chips etc.
Main tests before delivery
a) Each genset will be tested more than 4 hours totally. (idleload, load, fully load and 10% overload)
b) Noise level test.
c) Operation of the various meters on the control panel.
d) The gas generating sets appearance and all marks are checked .
To further meet your needs, we offer personalized products and services as follows:
1.Gas genset heat recovery project (genset heat recovery, heat recovery steam generator boilers);
2.Silent-type gas generator;
3.Gas Generator Set with the functions of automatic start, automatic grid, automatic load transfer, remote communications, control, monitoring(enables mobile control unit open, shut down and data acquisition).
