Home > Products > Electric Power Distribution System > Generator Set

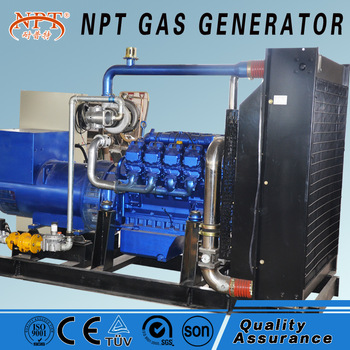

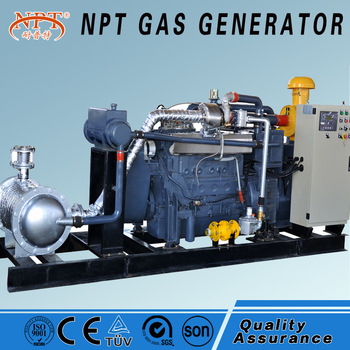

150kw gas electric power plant from Weifang manufacturers

150kw gas electric power plant from Weifang manufacturers

Price:

US 36700-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

80 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Naipute

Products Model:

150kw Natural gas cogeneration units

Products Details
Company Profile

Quick Details

Brand Name: Naipute

Model Number: 150kw Natural gas cogeneration units

Place of Origin: Shandong, China (Mainland)
Output Type: AC Three Phase
Speed: 1500-1800(r/min)
Frequency: 50HZ/60HZ
Rated Power: 150kW/214.2kva
Rated Voltage: 400/230
Rated Current: 270A
Structure: integral
Exciting method: AVR Brushless natural gas cogeneration units
Rated Power Factor: 0.8 LAG
Overall dimension (L x W x H)(mm): 2600X1250X175mm
Net weight (kg): 2150
Gas Engine Cylinder number: 6
Gas Engine Bore x Stroke (mm): 132X145
Control panel: LCD display
Fuel type: Natural gas
Alternator Shaft: Single bearing

Packaging & Delivery

Packaging Details: gas electric power plantgas electric power plantgas electric power plant :special package as your requirement
Delivery Detail: 7-25 working days after get the deposit

Specifications

Product Description

Gas electric power plant

1.20 years' experience
2.Competitive price
3.Low consumption
4.At least 4 hours

NPT brand 150kW Natural Gas Generator Set

Generating set general Model		150GFT
Structure		integral
Exciting method		AVR Brushless
Rated Power (kVA/kW)		150/120
Rated Current(A)		270
Rated Voltage(V)		400/230
Rated Frequency(Hz)		50
Rated Power Factor		0.8 LAG
Overall dimension (L x W x H)(mm)		2600X1250X1750
Net weight (kg)		2150
Gas Engine	Model	ND119D17TL
	Type	V type 4 stroke, electric control ignition, pre-mixed lean burn, turbocharged after cooled
	Cylinder number	6
	Bore x Stroke (mm)	132X145
	Total displacement (L)	11.9
	Rated Power (kW)	168
	Rated Speed (r/min)	1500
	Fuel Type	Natural gas
Control panel	NPT Brand150KZY	LCD display
	Circuit Breaker type	ATS/SKT1-250
	Control module	Smartgen HGM6320
	Operation language	English
Alternator	Model	XN274G
	Brand	MBH( Germany)
	Shaft	Single bearing
	Rated Power (kW)	150
	Rating(kVA)	187.5
	Enclosure protection	IP23
	Efficiency (%)	92.2

Packaging & Shipping

Gas electric power plant

Packing and tranfering

Our Services

150kW Natural gas cogeneration units

Pre-sale service

Provide specification parameter and consultants service, customized design optional.

According the requirement of customer we

can design and offer a complete set of equipment, such as mute device and heat treatment device and so on.

After –sale service

Installation guide and maintenance manual

Guide user to install the machine and free debugging machine for free.

Training the operator for the user, cooperate with the user finish the acceptance work.

Tracking service

Regularly consult feedback from end user ,avoid potential problem and solve problem in time.

Company Information

Install case

Domestic

Abroad

FAQ

Contact

Helen Wang

Sale manager

skype:hellen.yu3

Trademanager: cn1511922066

QQ:2548526848

What’s up & Viber&cell phone No.:(86)15662551270

Weifang Naipute Gas Genset Co.,ltd

Add:1599 Xinyuan Rd., Economic Development Zone, Weifang,Shandong,China

Website: http://en.wfnpt.com (English) http://www.wfnpt.com/ (Chinese)
