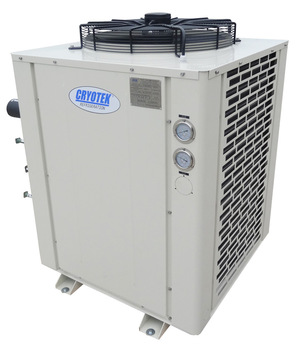

R22 Hermetic Scroll compressors Refrigeration Unit

 Design Features

1. Compact design with condenser integrated, State-of-the-Art design of sheet metal with corrosion protection, easy for installation & maintenance

2. Scroll or reciprocating compressors available, single or in parallel

3. Local made fans are standard, low noise imported fans as optional

4. Reliable performance

- Esthetic sheet metal and superior product quality brought by professional design software

- High product performance and reliability by various strict laboratory tests

5. Fuel-efficient

- Add more values to the products by using new energy saving technologies, e.g. Digital & vapor injection

- High heat exchange efficiency of the condenser & low noise/low power consumption fans

6. High quality

Total quality control system and strict manufacturing process ensure the high quality

7. Precise Controls

Using electronic controller to realize more accurate evaporating temperature control and less compressor start-up

8. Widely Usage

- Various walk-in cold storages, e.g. fruit/vegetable wholesale market

- Supermarket

- High-end hotels/resorts & entertainment facilities

Nomenclature

 Performance Data of Scroll RACK - Medium Temp.

R22, Capacity & Power input in KW, based upon suction temp. @ +18.3C/0K subcooling

 Remarks:

Shadow Mark:based upon Max suction heat 10K, Additional-cooler

1.Dimensions catagorized by different colors

2.Room Size is the recommended size for normal duty application, Medium temp. room with 100mm PU and Low temp. room with 120mm PU

Configurations:

Core competence:

1. Over 11+ years of professional refrigeration products designing(12 patens), manufacturing and application knowledge and experience in supermarket, convenience store and cold room.

2. Wide range of products with Freon, CO2, Amonia refrigerants: condensing unit, parallel compressor rack with scroll, reciprocating and screw compressor, air-cooled condenser, unit coolers, pressure vessels.

3. Products long used by top clients from all over the world such as: Walmart, Carrefour, Metro, Disney, Americold, Bosch, etc.
