os y cast iron stem gate valve

FOB Price:

US 1-4000 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

42000 Piece/Pieces per Month

Port:

FOB Xingang

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

GALA

Products Model:

ORGV3113

Products Details
Company Profile

Quick Details

Brand Name: GALA

Model Number: ORGV3113

Place of Origin: Tianjin, China (Mainland)
Standard or Nonstandard: Standard
Structure: gate valve
Pressure: 16Bar
Power: Manual
Material: Casting
Temperature of Media: Medium Temperature
Media: Water
Port Size: DN50-DN600
Valve: cast iron gate valve
Certificate: ISO9001,CE

Packaging & Delivery

Packaging Details: each pc into one bubble plastic bag,several pcs into one wooden crate
Delivery Detail: within 30 days

Specifications

1.MSS SP-70,EN1171 design.
2.Size:DN50-N600.
3.W.P:16Bar.
4.Certificate:ISO9001/CE/TS.
5.Cast iron material.

Who we are?

Our company is alibaba gold member for nine year.We have attend the large-scale exhibition at home and abroad each year.We are valves manufacturer,factory located in Tianjin. our mainly products for fire products, water works and HVAC. Welcome to visit our website www.galars.info.

Why you choose us?

1.Newly developed facilities ensure high and stable quality.

2.Enable to supply UL/FM valves.

3.Experienced technology

4.Excellent after-sale service to satisfy customers.

5.Sufficient capacity ensures prompt delivery.

6.Continuous quality improvement and new designs development.

7.Reasonable and stable price

8.Meets different countries standards,such as ANSI,DIN,BS etc.

Technical data

Valve Standard:

MSS SP-70

EN1171

Nominal diameter

2"-24"/DN50–DN600

Working pressure:

16Bar

Face-to-face:

BS5163/EN 558 Series 3

Flange accommodation:

ANSI B16.1 Class125/150

AWWA C207

MSS SP44 Class150

EN1092-2 PN16

Tightness check:

API 598

ISO 5208,

EN12226-2

Pressure Temperature Ratings

Working Pressure	16Bar
Testing Pressure	Shell:24bar
	Seal:17.6bar
Working Temperature	-10 °C to 120 °C

Material Specification

Part	Material	ASTM
Body	Cast iron	A126 Class B
Bonnet	Cast iron	A126 Class B
Disc	Cast iron	A126 Class B
Seat RING	Bronze	B62 C83600
Stem	Brass	B16 C36000
Packing	Stainless Steel 420	A276 S42000
Hand	Graphite	Non-Asbestos
	Cast iron	A126 Class B

Dimensions

DN	mm	50	65	80	100	125	150	200	250	300	350	400	450	500	600
DN	inch	2	2-1/2	3	4	5	6	8	10	12	14	16	18	20	24
L		178	190	203	229	254	267	292	330	356	381	406	432	457	508
H		375	422	475	606	683	828	1003	1211	1421	1641	1828	2047	2246	2632
D		178	178	200	254	300	300	348	400	457	560	560	610	610	765

GALA - Extends Business on a Global Perspective.
GALA company offers a wide range of products and systems in the field of valves, piping, and seismic isolation for applications ranging from equipment for office buildings, fire fighting, heating, water works, sewerage, marine, industrial to top fluid control. Our aim is meaningful contribution to society by providing comfort and safety through our products, technical skills and services!

GALA - Professional Manufacturer of Industrial Valves
GALA have variety products to meet customer demand of different valve. Designing, manufacture and sale of one-stop service is the company's core strengths.

GALA products cover the following industry area:
Water supply system, water treatment, food, chemical, cement, air-conditioning systems, industry engineering, nuclear power, papermaking, Petrochemical Industry, pharmaceutical, Powder Industry, steel industry, sugar refining, textiles and so on. GALA anti-pollution environmental protection industry is one of the major business. GALA provides various valve for wastewater processing and exhaust gas processing.

GALA have wide variety of industrial valves, including following main products:
Fire protection valve
Balancing Valve
Butterfly Valve
Gate Valve,Globe Valve,Check Valve,Ball Valve
Strainer
Flexible Rubber Joint

Other Valves and fittings are also available from GALA.
All products will be designed, manufactured and assembly by GALA.

Basic Information

Business Type: Manufacturer
Main Products:
Location: HeBei, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency: USD,EUR,CNY
Accepted Payment Type: L/C,D/A,D/P,T/T
Nearest Port: FOB XINGANG

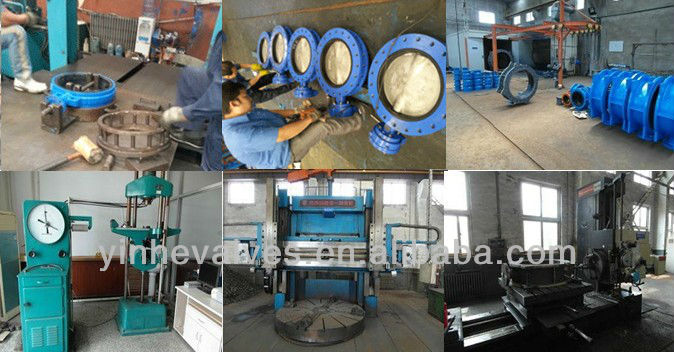

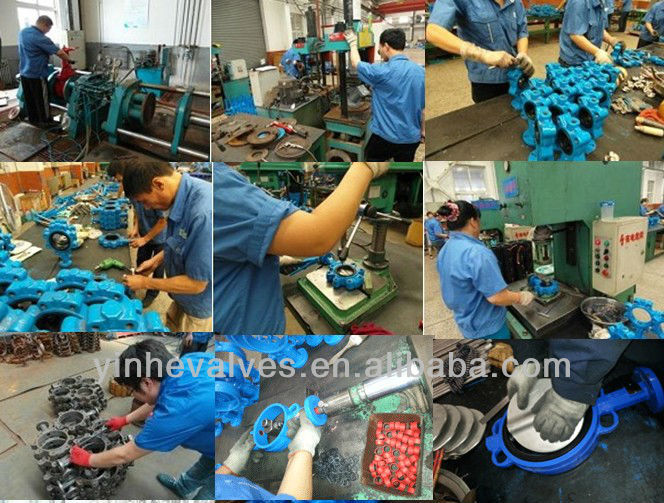

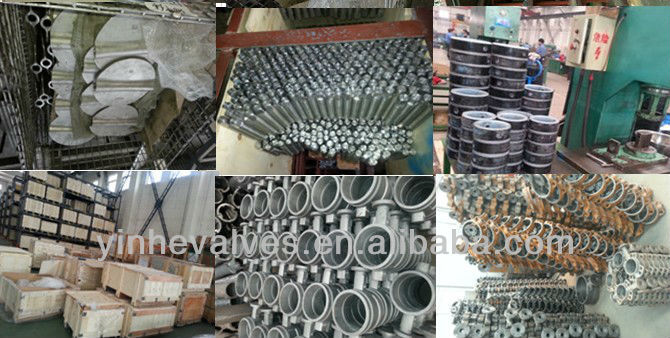

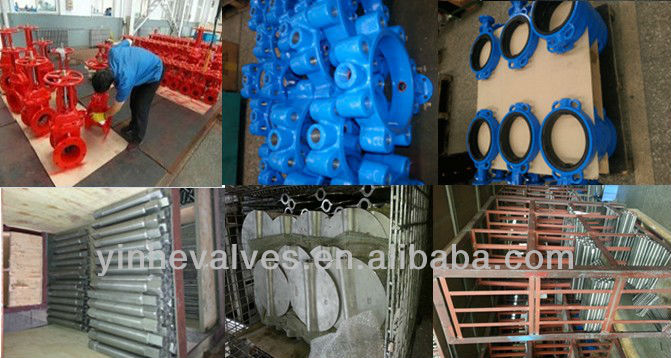

Company Photos
