Home > Products > Automotive Air Conditioning > Air Filter

F5 Ceiling Filter F5 Ceiling Filter Pads Ceiling Filter Material

FOB Price:

US 2.1-3.15 / Square Meter

Min.Order Quantity:

1 Square

Supply Ability:

1000000 Square per Meter/Square

Port:

Guangzhou/Shenzhen/HongKong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,PAYPAL

Brand:

JNF Paint Booth Ceiling Filter Rolls

Products Model:

FM08

Products Details
Company Profile

Quick Details

Brand Name: JNF Paint Booth Ceiling Filter Rolls

Model Number: FM08

Place of Origin: Guangdong, China (Mainland)
Condition: New
Efficiency: 99.99%
Construction: Filter Media Roll
Filtration Grade: Medium Filter
Medium Material: Synthetic Fiber
Porosity: 0.3u
Dimension(L*W*H): Rolls & Pads
Weight: 160G~500G
Certification: ISO9001
Warranty: 1 Year
After-sales Service Provided: No overseas service provided
Color: White F5 Ceiling Filter Pads
Usage: F5 Ceiling Filter
Grade: EN779 F5 Paint Booth Ceiling Filter Rolls
ASHRAE: MERV9
Application: Paint Spray Booth
Feature: Low Resistance F5 Paint Booth Ceiling Filter Rolls
Type: High dust capacity F5 Paint Booth Ceiling Filter Rolls
Name: ASHRAE MERV9\MERV11 Ceiling Air Filter Media

Packaging & Delivery

Packaging Details: PE bag
Delivery Detail: Shipped in 5 days after payment

Specifications

F5 Ceiling Filter F5 Ceiling Filter Pads Ceiling Filter Material

Specifications

Model No.	EN779 Class	Ave. Arrestance (%)	Rated Air Flow (m/s)	Ini. Pressure Drop (Pa)	Fin. Pressure Drop (Pa)	Dust Holding Capacity (g/m2)	Ave. Efficiency (%)	Standard Dimension (m)	Customized
FM08-F5/N	F5	97	0.25	25	250	320	46	2 x 20	Available
FM08-F5/J	F5	98	0.25	30	250	300	55	2 x 20	Available
FM08-F5/W	F5	99	0.25	25	250	320	55	2 x 20	Available
FM08-F5	F5	96	0.25	25	250	360	46	2 x 20	Available
FM08-F6	F6	99	0.25	55	250	300	65	2 x 20	Available

Note:

Standard Size and Customized Size of FM08 EN779 F5 Paint Booth Ceiling Filter Rolls & Pads available
Served in FM08 EN779 F5 Paint Booth Ceiling Filter Rolls & Pads Auto Air Filter Materials ASHRAE Ceiling Air Filter Media rolls or pads (pieces)

Product Description

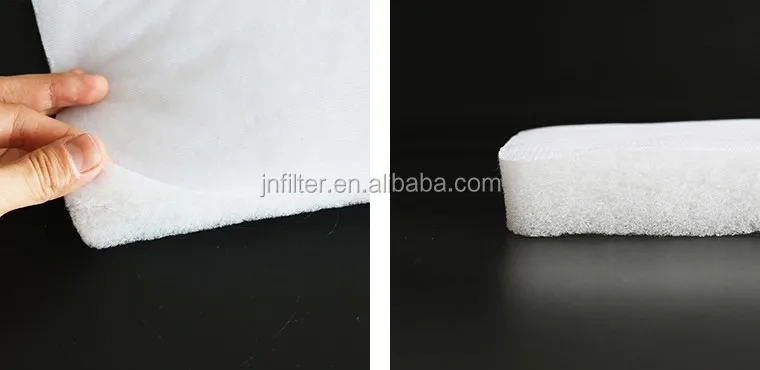

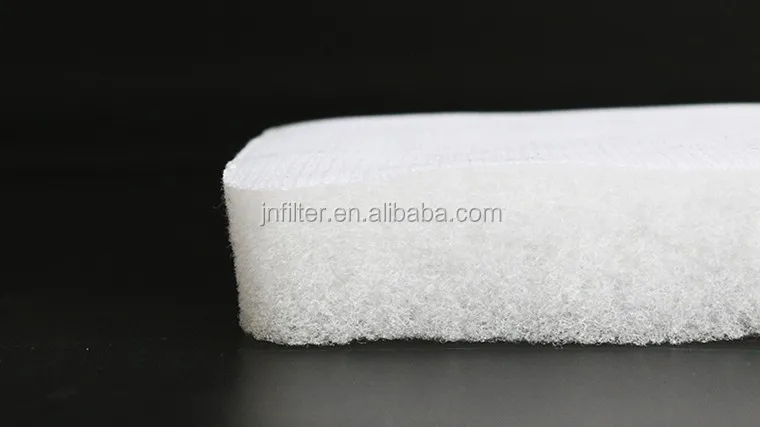

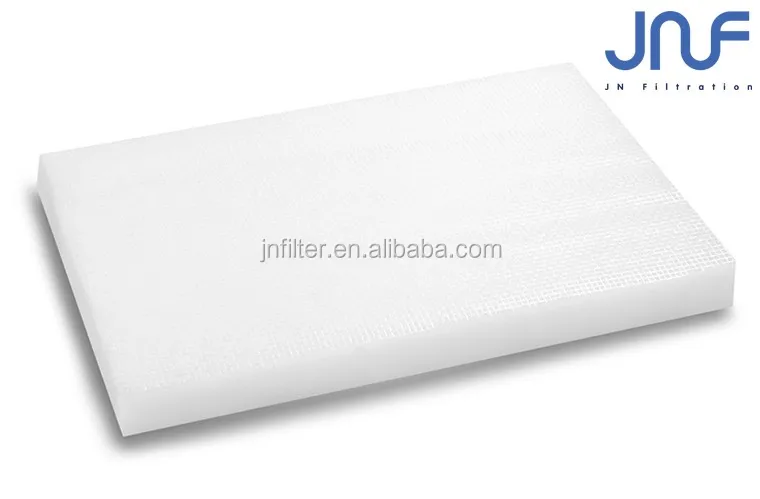

JNF FM08 EN779 F5 Paint Booth Ceiling Filter is made of synthetic fibres with thermal bonding, which are progressively built up to create a medium with low press drop, and high particle interception capacity. JNF FM08 EN779 F5 Paint Spray Booth Ceiling Filter is to reliably removes dust particles that passed through the prefilter zone (fine filtration) and ensure even distribution of air and circulation around the object being painted.

Advantages

EN779: 2012 - Class F5/F6;
JNF FM08 EN779 F5 Paint Booth Ceiling Filter DIN53438 fire Class F1;
JNF FM08 EN779 F5 Paint Booth Ceiling Filter is made of synthetic fibres in progressive structure, which brings low press drop, high dust holding capacity, hence excellent filtration;
Progressive media density enhances particle collectionefficiency and life of filter

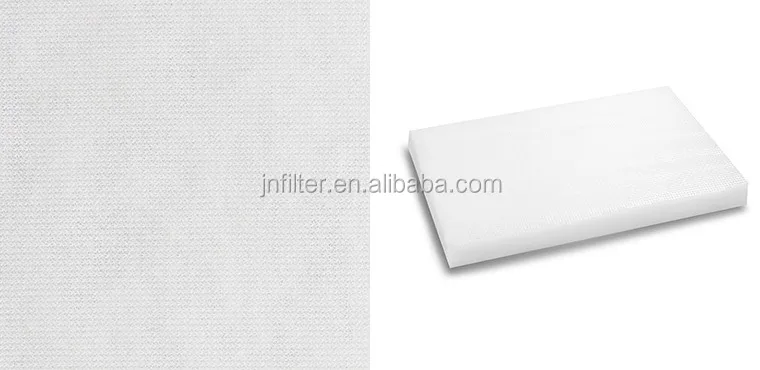

Available in both rolls and pre-cut sheets (customized size available)
Paint Booth Ceiling Filter Media is widely applied for preventing dust from affecting the paint job

F5 Ceiling Filter F5 Ceiling Filter Pads Ceiling Filter Material

Applications

Paint Booth Ceiling Filter Media for ceiling filtration at spray booth
Standard industrial spraying system
Paint Booth Ceiling Filter Media air clean system pre-filtration
Flow decentralization at ventilation system

F5 Ceiling Filter F5 Ceiling Filter Pads Ceiling Filter Material

Basic Information

Business Type: Manufacturer
Main Products:
Location: Guangdong, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES
Accepted Payment Currency: USD,CNY
Accepted Payment Type: L/C,D/A,D/P,T/T,Western Union,MoneyGram,Credit Card,PayPal
Nearest Port: huangpu,shenzhen,Hongkong

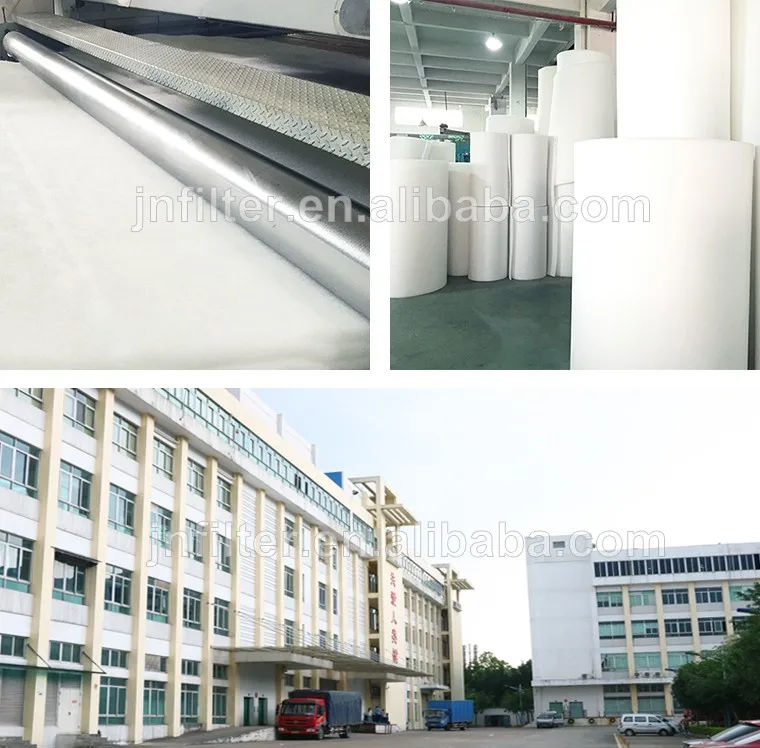

Company Photos
