Flake ice machine manufacture 5Ton per day for supermarket

Flake ice machine manufacture 5Ton per day for supermarket

FOB Price:

US 5811-7150 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1000 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Oceanblue

Products Model:

F050

Products Details
Company Profile

Quick Details

Brand Name: Oceanblue

Model Number: F050

Place of Origin: Shandong, China (Mainland)
Condition: New
Capacity: 5000kg
Ice Shape: Flake Ice
Voltage: 380V
Power(W): 13570w
Dimension(L*W*H): 3000X1000X1525
Weight: 550kg
Certification: CE
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Material: Stainless Steel/cast iron

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 25 days after receive the deposit

Specifications

Product Description

Flake Ice Machine Manufacture 5Ton Per Day For Supermarket

1)Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
2)Stainless steel materials,advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
3)The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
4)Photoeletric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
5)Integrated modular design,convenient to install and maintain.

Main Features

Power Requirments:General international standards electrical power system
Refrigerant Type:R717、R22、R404A、R507A

Selection of materials
	①Q345 chrome-faced	evaporator up and down	①Q345 or magnalium
	②SUS304		②SUS304
	③SUS316L		③SUS316L

Application

Flake ice Application

Flake ice has a variety of applications,for example,inside of packing box for fresh vegetables,which is in favor of long-distance transporation.Especially for tender fish stocks and transportation,such as trout,squid,cuttlefish and so on,the flake ice is the first choice.It is also applied for dye-chemistry indu stry,large concrete project,large crude and fresh supermarket,meat process,large fishery whole sale market,food processing company,and so on.

Seawater flake ice machine

Flake ice machine can be used in seashore or the fishing boat directly,and use seawater to make ice.The sea food can be frozen and retain freshness rapidly.Fishery industry is the one of the most important application fields of Flake ice machine in the world area.

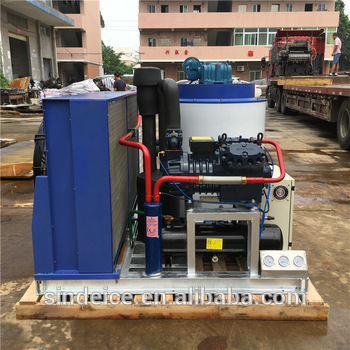

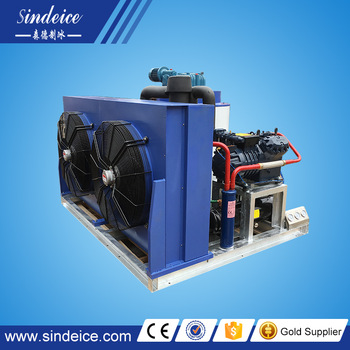

Detailed Images

Parameter

Model	Daily Output (kg/d)	Brine Pump Power(kw)	Evaporating Temperature	Dimension LxWxH(mm)
F003	300	0.016	-20℃	1050x740x780
F005	500	0.016	-20℃	1235x740x780
F010	1000	0.016	-20℃	1290x970x912
F015	1500	0.016	-20℃	1290x970x982
F020	2000	0.016	-20℃	1500x1085x1208
F025	2500	0.016	-20℃	1500x1085x1208
F030	3000	0.016	-20℃	1800x1135x1308
F050	5000	0.016	-22℃	1650x1555x1580
F080	8000	0.016	-22℃	2230x890x1470
F100	10000	0.016	-22℃	2230x890x1640
F150	15000	0.016	-22℃	3400x2080x1880
F200	20000	0.016	-22℃	3400x2080x2300
F250	25000	0.016	-25℃	3400x2080x2600
F300	30000	0.016	-25℃	4580x2770x2400

Production

Diagram

Flake ice machine structure diagram

Our Service

We are a consulting and engineering company with main business line of Industry Refrigeration products.

Ocean Blue is an energetic runner in market of Industrial Refrigeration, Freezing, and Cold Storage,focusing on offering solution and equipments with advanced technology in market of industrial refrigeration, cold storage, quick freezing and coldchain logistics.

We offer solutions and advanced refrigeration equipments for all kinds of food processing, cooling,freezing and deep freezing projects.

Our rapid growth and success can be attributed to our dedication to quality, technical expertise, cost efficiency,and high technology capabilities.

Advantage

Scientific design and many years of engineering experience
OceanBlue will offer you the best scheme of tailor-made ice-making system We have not only supplied lots of ice flaker systems to customers from various places but also offered technological consultancy to them.

High efficiency and energy saving
We have optimized the design of ice flaker units to ensure the ice flaker units can function constantly without wasting energy. We have also adopted a special kind of alloy material and patent processing technology to ensure efficient heat conductivity.

Simple maintenance and convenient moving
All our equipment is designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts needs replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment, we always take into full account how to convenience future moves to other construction sites.

After-sale service
We have been constantly offer every customer not only top products quality but also service, The After-sales Service Dept. consists of professional engineers.
