2 way CWX 15 12vdc brass DN15 CR01 electric water flow control ball valve

2 way CWX 15 12vdc brass DN15 CR01 electric water flow control ball valve

FOB Price:

US 11-151 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

20000 Piece/Pieces per Month

Port:

Tianjin China

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

CWX

Products Model:

CWX15N/Q

Products Details
Company Profile

Quick Details

Brand Name: CWX

Model Number: CWX15N/Q

Place of Origin: Tianjin, China (Mainland)
Standard or Nonstandard: Standard
Structure: Ball
Pressure: Medium Pressure
Power: electric
Material: Brass or SS304
Temperature of Media: Medium Temperature
Media: Water
Port Size: 1/4’ ~ 2
Application: General
Rated Volotage: DC3-6V/AC/DC9-24V
Output torque: 1.5~6NM
Open/close time: 3-5seconds
Rated current: 45-100MA
Actuator rotation: 90/180 degree
Low Working Current: 80mA~150mA
Enclosure: IP65
Control mode: 2,3,5 wires(CR01/02/03/04/05/06)

Packaging & Delivery

Packaging Details: Packaging Detail: Inner packaging: paper box:1~2PC/Paper Box Outer packaging: cartonbox , 30-80PCS/CTN
Delivery Detail: Delivery Detail: 3-5 work days for PO<2000USD via Express

Specifications

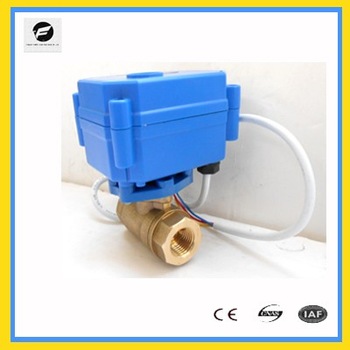

2 way CWX-15 12vdc brass DN15 CR01 electric water flow control ball valve

Product Description

Technical Parameters:

Product size	NPT/BSP 1/2'', NPT/BSP 3/4", NPT/BSP 1'' (Optional)
Maximum working pressure	1.0MPa
Circulation medium	Fluid, Air
Rated voltage	DC5V, DC12V, DC24V, AC/DC9-35V(Optional)
Wiring control methods	2 wires, 3 wires, 4 wires, 5 wires
Working current	≤500MA
Open/close time	≤5 Sec
Life time	70000 times
Valve Body material	Brass, Nickel plated Brass, 304 Stainless steel (Optional)
Actuator material	Engineering Plastics
Sealing material	EPDM & PTFE
Actuator rotation	90°
Max. torque force	2 N.M
Cable Length	0.5m,1.5m (Optional)
Environment temperature	-15°C~50°C
Liquid temperature	2°C~90°C
Manual override	No
Indicator	Yes
Protection class	IP65

Specifications

2 Way Electric solenoid control Valve; electric valve, mtorized valve, ball valve, water valve, brass valve for chilled water, dringking water, hvac system, solar system; 230VAC NPT, BSP thread Mini Motorized Ball Valve, Size from 1/4" to 1". AC/dc 5V, 12V, 24V, 110V, 220V. 2-way and 3-way, brass, stainless steel, CPVC

Features:
- Mini dimension suits for small equipment
- Patented technology-floating seal structure
- Long service life 700,000 to 100,000 circles
- Low working current, only 60 to 80mA
- IP67 and F type are available
- Manual override function is safe and easy
Applications:
- HVAC
- Water treatment
- Small equipment for automatic control
- Replacing solenoid valve, particularly when solenoid cannot work reliably
Technical parameters:
- Size: 1/2 to 1 inches CWX-15 12vdc brass 15mm 2 way electric water flow control ball valve
- Material: stainless steel (304, 316), brass, PPO
- Voltage: 5, 12, 24, 110 to 220V AC/DC
- Working pressure: 1.0 or 1.6mPa
- Actuator rotation: 90 degree
- Rotation direction: double acting
- Power: maximum 5W
- Manual override: available
Material of main parts:
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel

CWX-15 12vdc brass 15mm 2 way electric water flow control ball valve

Nominal Size	Pressure	Body	Medium temperature	Enclosure
DN25	0-1.0Mpa	Brass ball valve	-20°C< t <100°C	IP65
Work voltage	Input power	Working current	nominal torque	Open/Close time
DC12V	Max. 4W	60-80mA	2N*M	5 second
