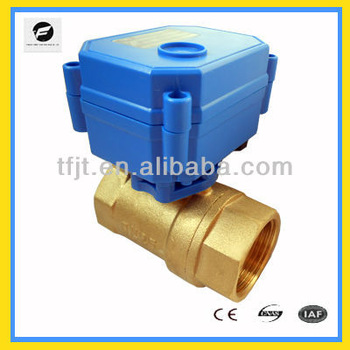

Electric brass 2 way DN25 motorised valve for water treatment HAVC automatic control

FOB Price:

US 0-20 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

15000 Piece/Pieces per Month

Port:

Tianjin

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

CWX

Products Model:

CWX-15Q/N

Products Details
Company Profile

Quick Details

Brand Name: CWX

Model Number: CWX-15Q/N

Place of Origin: Tianjin, China (Mainland)
Standard or Nonstandard: Standard
Structure: Ball
Pressure: 1.0Mpa/10bar/150psi
Power: DC3-6V,,AC/DC9-24V,AC110V,AC120V,AC220V
Material: Stainless steel (304, 316), brass,
Temperature of Media: 0-90°C
Media: water,air,acid,gas.
Port Size: 1/4’,1/2’,3/4’,1’,1 1/4’ ,8mm,10mm,15mm,20mm,25mm,32mm
Special function: Position indicator | quick open
Actuator rotation: 90 degree
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Torque output: 1.5NM-6NM
Control mode: 2,3,5 wires(CR01-CR06)
Approve: Solar thermal,under-floor,rain water,irrigation
Low Working Current: <80mA
Rotation direction: double acting
Product life: 100,000 times

Packaging & Delivery

Packaging Details: Paper Carton:48x40x28(CM)/100pcs/0.054Cubic Meter 27x24x19(CM)/50pcs/0.012Cubic Meter 13x10x8.5(CM)/2pcs/0.011Cubic Meter
Delivery Detail: Within 3-5 working days(samples and order<1000USD)via Express

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.

We would like to grow business with you. Contact us, let's talk more!
