MERV13 MERV14 V bank 4V Mini Pleated Medium Air Filter size 24 24 12

MERV13 MERV14 V bank 4V Mini Pleated Medium Air Filter size 24 24 12

FOB Price:

Get Latest Price

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

CRAC

Products Model:

CRAC-595-MF001

Products Details
Company Profile

Quick Details

Brand Name: CRAC

Model Number: CRAC-595-MF001

Place of Origin: Jiangsu, China (Mainland)
Condition: New
Efficiency: 99.9%, 45%@0.5μm
Construction: Box Filter, Box Filter
Filtration Grade: Medium Filter
Medium Material: Fiberglass
Porosity: 0.3u, 0.5μm
Dimension(L*W*H): Customer Requirs)
Weight: 8.5kg/pcs
Certification: ISO9001
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Size: 595x595x295mm
Media: Glass Fiber
Frame: aluminum/galvanized/stainless steel/plastic
Separator: EVA hot melt bead
Type: medium filter ABS frame v bank filter
Gasket: EVA. Neoprene
Weight: 3kg

Packaging & Delivery

Packaging Details: Standard Export Package vacuum bag inside for each filter ,Carton Box one pice per box out side ,underside with plywood pallet ,we also can follow customer package demand
Delivery Detail: Shipped in 7 days after payment

Specifications

Product Description

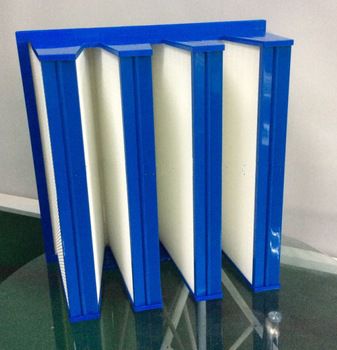

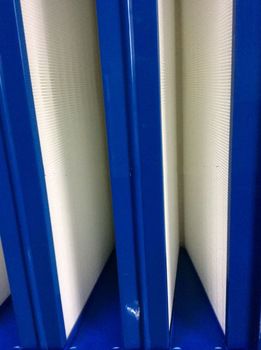

CRAC Mini-Pleated V-type Medium Air Filter Item:CRAC-595-MF001

NO.1 V-type medium air filter technology parameters

Model	Width (mm)	Height (mm)	Depth (mm)	Pockets	Air flow(m³/h)	Initial Resistance (≤Pa)	Final Resistance (Pa)	Media area (m²)	Dust Holding(g)	Efficiency
CRAC-595-MF001	595	595	295	3	2800	120	300-400	16.2	1460	F7
CRAC-595-MF002	595	595	295	4	3700	120	300-400	21.6	1950	F7
CRAC-610-MF003	610	610	295	5	4700	120	300-400	27.7	2490	F7
CRAC-595-MF004	595	595	295	3	2600	120	300-400	16.2	1430	F8
	595	595	295	4	3500	120	300-400	21.6	1900	F8
CRAC-595-MF006	610	610	295	5	4500	120	300-400	27.7	2440	F8
CRAC-595-MF007	595	595	295	3	2900	120	400-500	17.8	1570	F9
CRAC-595-MF008	595	595	295	4	3600	120	400-500	23.8	2090	F9
CRAC-595-MF009	610	610	295	5	4900	120	400-500	30.4	2680

NO.2 V-type Filter Media and Operation condition

Media	Domestic/import High-humidity resistance Glass fiber
Sealant	Polyurethane
Frame	Galvanized frame/Aluminum/Plastic
Separator	EVA hot melt bead
Gasket	EVA. Neoprene
Efficiency	65%-95% @0.5 μm
Max. Temperature	70°C
Max. Humidity	80%-100%

NO.3 Air Flow And Resistance
